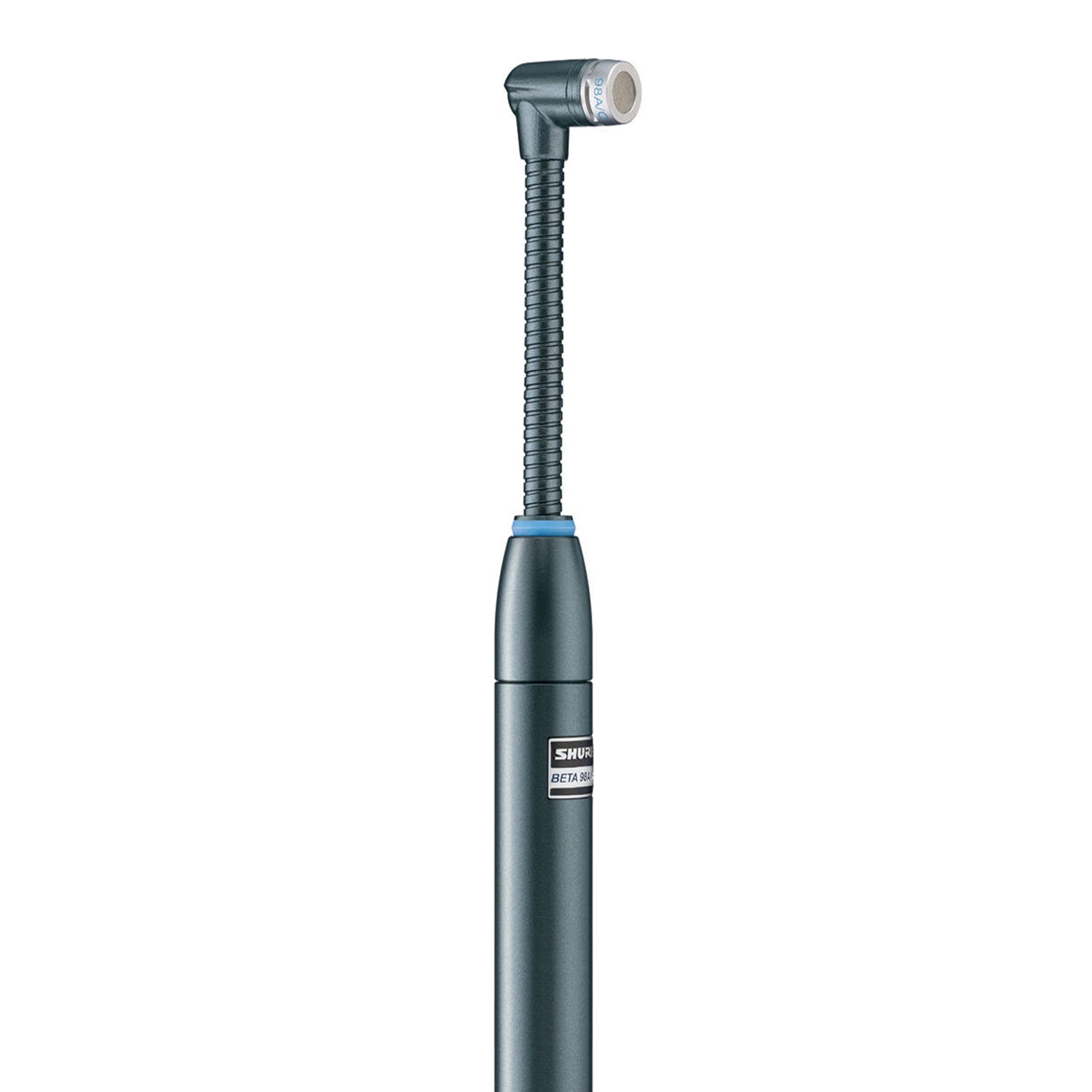

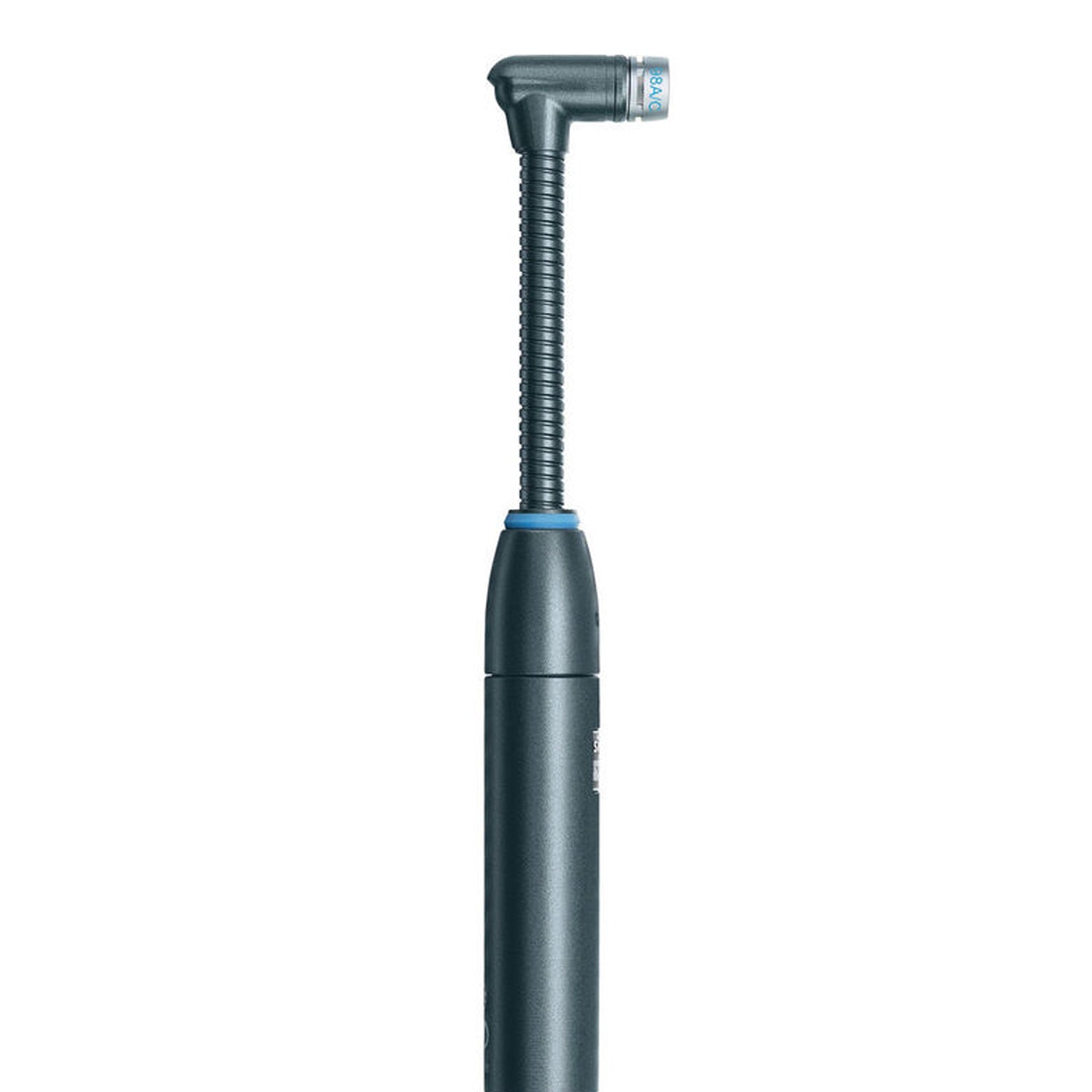

Shure BETA 98AMP/C Cardioid Instrument Microphone

Instrumental microphone combines an integrated preamplifier with a miniature condenser capsule to provide a smooth response for percussion. It features a flexible gooseneck and the A75M microphone mount for secure placement in many configurations.

• Uniform cardioid polar pattern provides maximum gain-before-feedback and rejection of off-axis sound for smooth high-end response and control
• Precision-engineered design features integrated preamplifier and XLR connector to maximize setup efficiency while minimizing stage clutter
• Frequency response tailored for drums and percussion applications with a wide dynamic range for use in high SPL environments
• Flexible gooseneck for precise placement and easy adjustment
• A75M Universal Microphone mount with quick release, for versatile and secure instrument and/or stand mounting

General Specifications

• Microphone Type: Electret Condenser
• Frequency Response: 20 Hz – 20 kHz
• Polar Pattern: Cardioid
• Output Impedance: 150 Ω
• Sensitivity: −50.5 dBV/Pa (2.5 mV) @ 1 kHz (open circuit voltage, typical)
• Self Noise: 31.0 dB SPL-A (A-weighted, typical)
• Signal-to-Noise Ratio: 63 dB
• Common Mode Rejection: ≥60 dB (10 Hz – 100 kHz)
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
• Net Weight: 130 g (4.6 oz.)

Maximum SPL

• 157.5 dB SPL (2500 Ω load): 1 kHz @ 1% THD
• 153.0 dB SPL (1000 Ω load): 1 kHz @ 1% THD

Dynamic Range

• 126.5 dB (2500 Ω load): measured at 1 kHz
• 122.0 dB (1000 Ω load): measured at 1 kHz

Clipping Level

• 12.5 dBV (2500 Ω load): 1 kHz @ 1% THD
• 7.5 dBV (1000 Ω load): 1 kHz @ 1% THD

Power Requirements

• Phantom Power: 11–52 V DC
• Current Consumption: 5.5 mA
