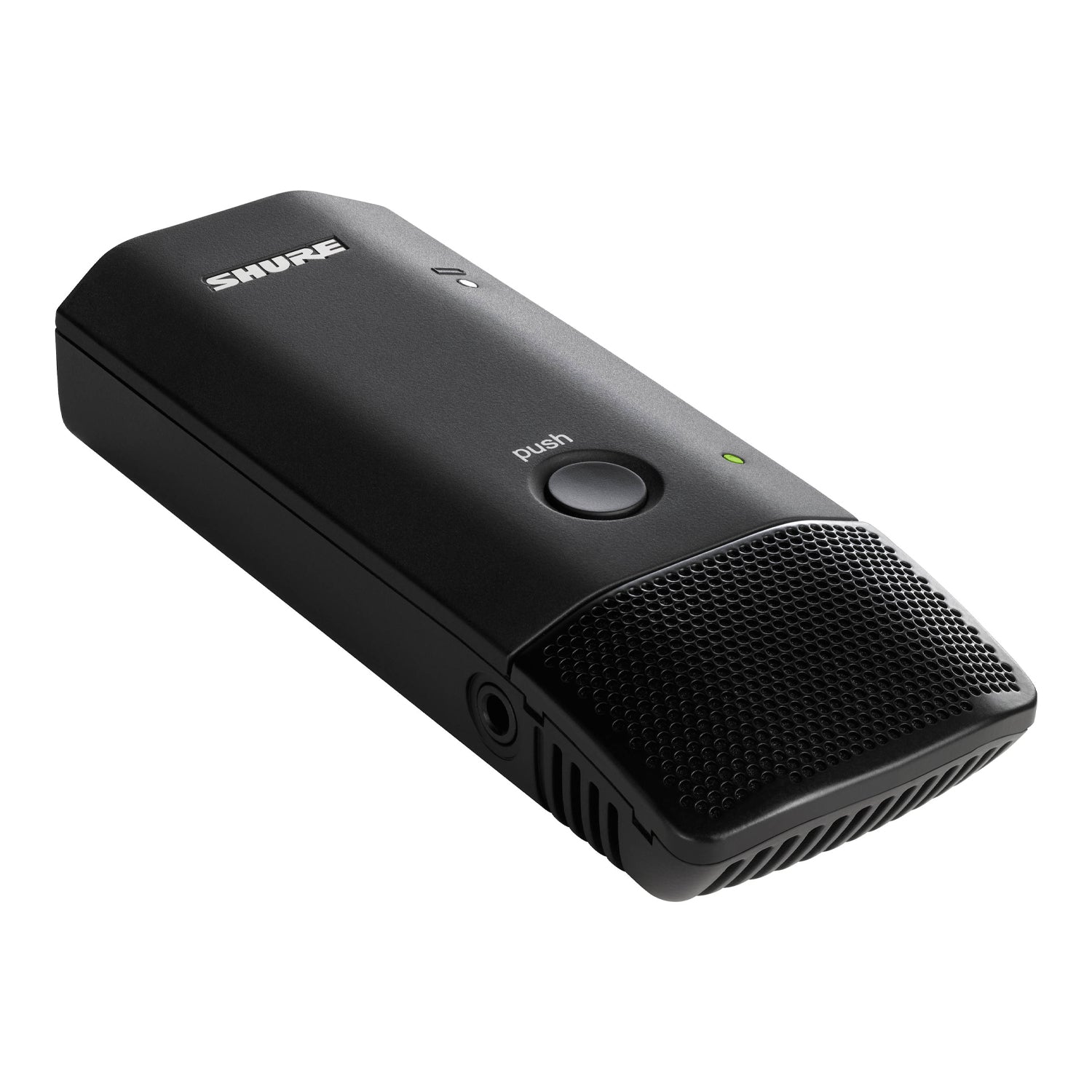

Shure Microflex MXW6/C Wireless Cardioid Boundary Transmitter

The Shure MXW6 is a boundary microphone transmitter compatible with Microflex Wireless Systems. With a low-profile design available in black or white and cardioid or omnidirectional polar pattern options, the MXW6 allows flexible placement with excellent audio capture on any surface in front of one or multiple speakers. All Microflex Wireless transmitters deliver pristine audio quality, intelligent wireless performance, encrypted transmission, and advanced rechargeability for conferencing and presentation applications.

• Bi-directional wireless communication for remote control and monitoring
• Programmable mute button with configurable operation modes
• Internal spatial-diversity antenna system
• USB charging and dock charging compatibility
• Low-profile tabletop design for discreet deployment

Microphone Type

• Wireless boundary microphone transmitter
• Integrated condenser microphone capsule (R185B)

Polar Pattern

• Cardioid

Frequency Response

• Full-range speech reproduction optimized for conferencing applications

Gain Adjustment

• -25 dB to +15 dB in 1 dB steps

Maximum Input Level

• -9 dBV (mic gain at -16 dB)

Wireless Technology

• Shure Microflex Wireless
• Bi-directional digital wireless communication
• AES-256 encrypted transmission
• Wireless range up to 50 m (160 ft)

Headphone Monitoring

• 3.5 mm (1/8") dual-mono headphone output
• Maximum headphone output power: 17.5 mW

Battery

• Rechargeable lithium-ion battery
• Up to 9 hours operation
• Approximately 2-hour full charge time
• Remote battery monitoring via network

Antenna

• Internal spatial-diversity antenna
• Linear polarization

Controls

• Programmable mute button
• Concealed power switch
• Low-battery LED indicator
• Remote configuration and monitoring

Connectivity

• USB 3.0 Type-A charging connection
• Compatible with MXW Networked Charging Stations and Access Point Transceivers

Construction

• Molded plastic housing
• Low-profile tabletop form factor

Dimensions

• 23 × 44 × 114 mm (0.9 × 1.75 × 4.5 in)

Weight

• 108 g (3.8 oz)
