Shure Microflex MXWANI4 4-Channel Audio Network Interface

The MXWANI4 Audio Network Interface is a 4-channel interface compatible with Microflex® Wireless systems that enables simple, out-of-the-box integration into conference room AV networks. It provides per-channel analog outputs and a versatile 4-port Gigabit Ethernet switch for connecting access point transceivers, networked charging stations, and third-party control systems. The MXWANI4 supports Dante™ digital audio networking to transport low-latency audio over Ethernet to networked DSPs and other Dante-enabled devices. With features such as corporate uplink mode, PoE support, and remote configuration via software, it serves as a central hub for routing and distributing Microflex Wireless audio in installed AV environments.

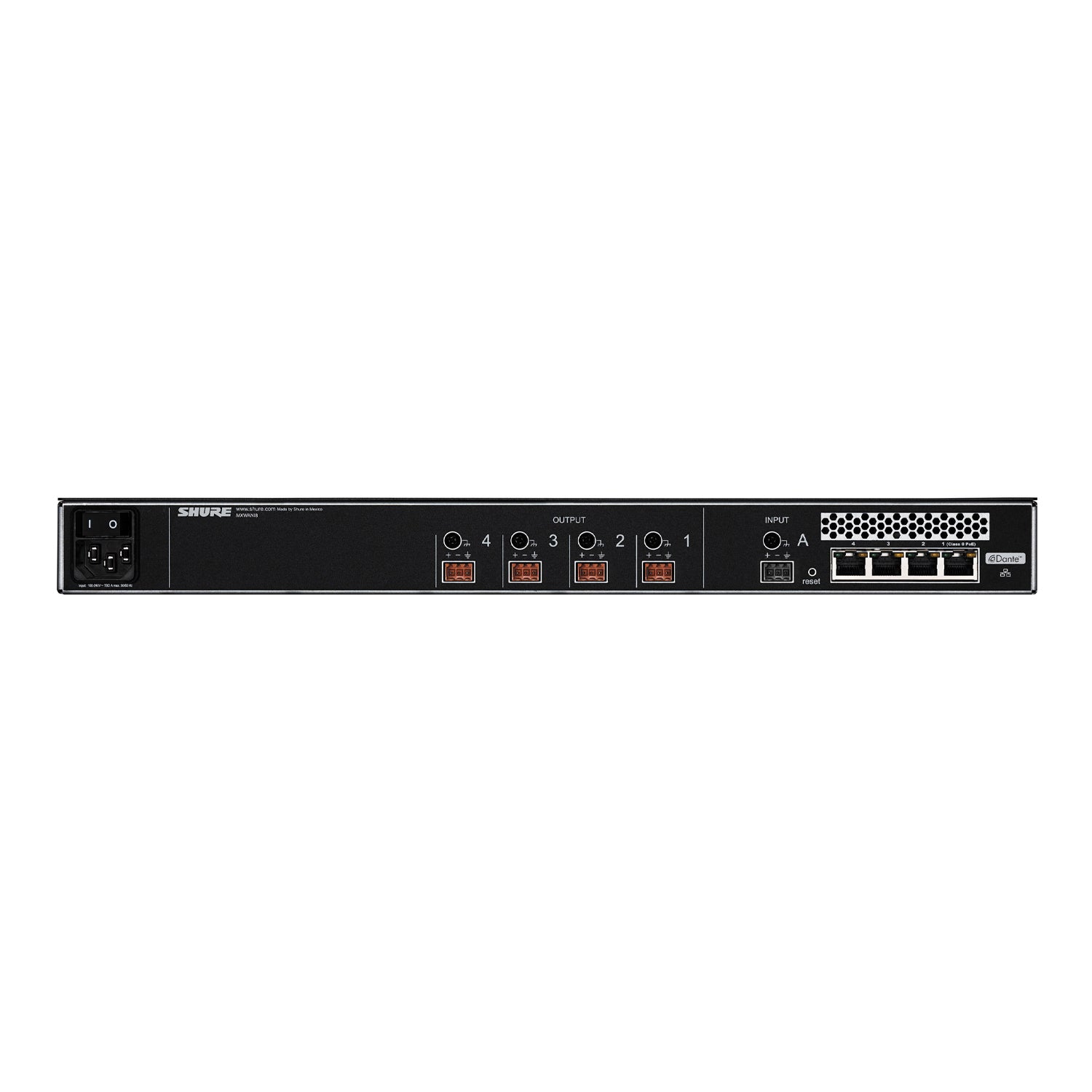

• Analog connections: 4 block connector channel outputs, with 1 block connector inputs
• Four port gigabit switch: Optimized port configurations for connection to the Access Point Transceiver and Networked
  Charging Stations, third party control systems, and corporate networks
• Ethernet connectivity: Send audio and control signals over long cable runs of up to 300 feet or anywhere over a corporate
  network
• Power over Ethernet: Port 1 of the rear panel switch supplies power over Ethernet to the Access Point Transceiver for
  simplified installation
• Corporate uplink mode: Link to the corporate network for remote control of system settings while keeping audio off the
  network for security and to reduce bandwidth

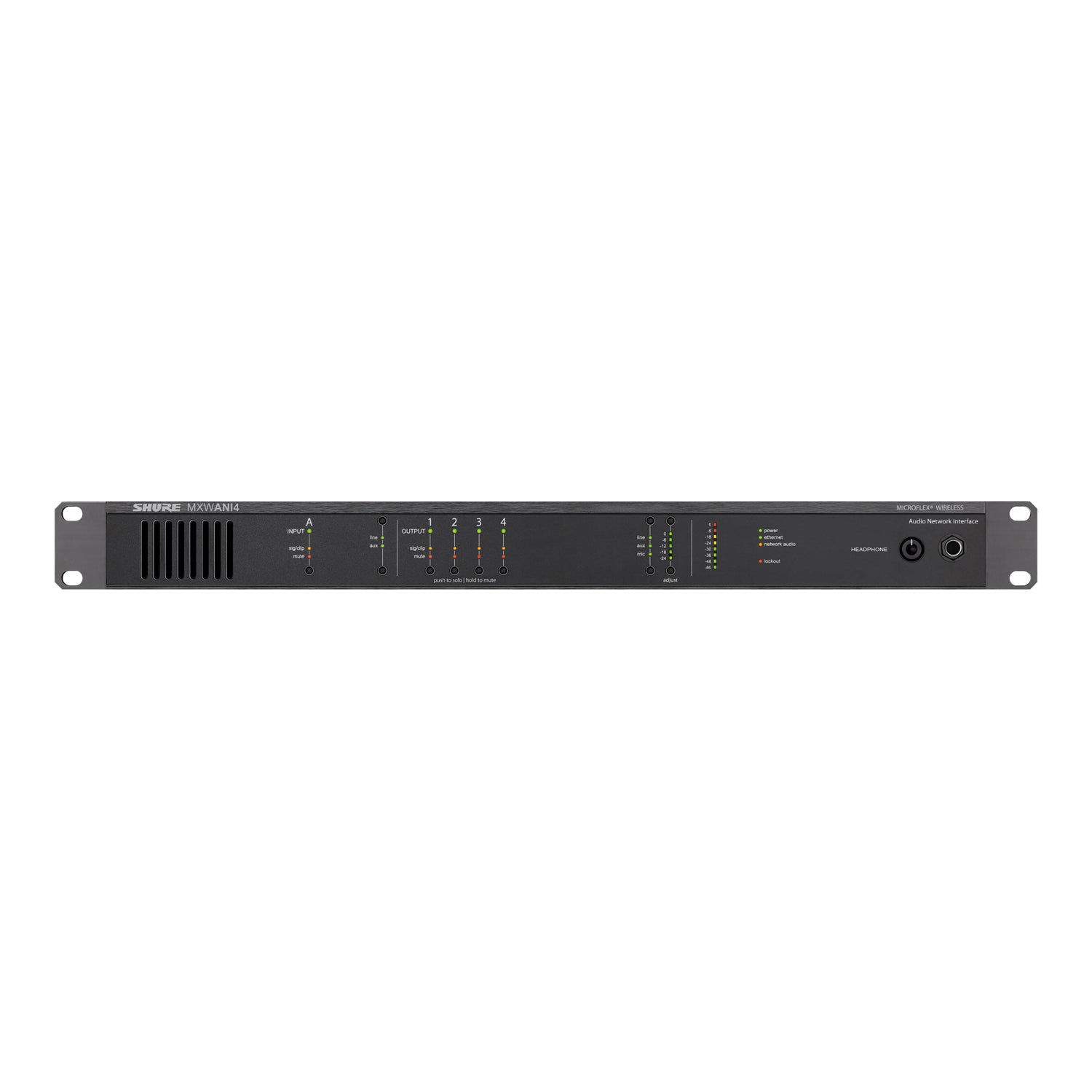

• Front panel controls: Mute or solo channels and set input/output levels easily from the front panel
• PC/Mac software control: Access the Microflex Wireless Control Software from a networked computer for input/output
  levels and port configuration
• Dante™ and AES67 networking: Transports low latency digital audio received from wireless microphones over Ethernet to
  any other Dante-equipped device
• Headphone output: Solo audio signal on any channel

Audio Channels

• 4-channel audio network interface for Microflex Wireless systems

Audio Networking

• Dante™ digital audio transport over Ethernet

Analog Audio Outputs

• 4x balanced line outputs (block connector, per-channel routing)

Network Interface

4-port Gigabit Ethernet switch integrated

• Port 1: PoE output for Access Point Transceiver
• Ports 2–4: Device/network expansion and control

Audio Processing

• 24-bit / 48 kHz digital audio conversion
• Configurable channel routing and summing
• Low-latency Dante transport

Security

• AES-256 encrypted audio transmission (Microflex Wireless ecosystem)

Control

• Web / software-based system configuration
• Front-panel channel level, mute, and monitoring controls
• Networked control via Microflex Wireless Control Software

Monitoring

• 1/4" (6.35 mm) headphone output for channel monitoring

Power

• 100–240 V AC, 50/60 Hz
• PoE support (for connected MXW devices via switch port)

Physical

• Rackmount chassis
• Steel / aluminum construction
• Designed for AV rack installation

Environmental

• Operating temperature: 0°C to 49°C (typical installed AV range)
• Storage temperature: −29°C to 74°C

System Role

Central routing and network bridge between:

• Microflex Wireless RF system
• Dante-enabled DSPs and mixers
• Analog AV infrastructure
