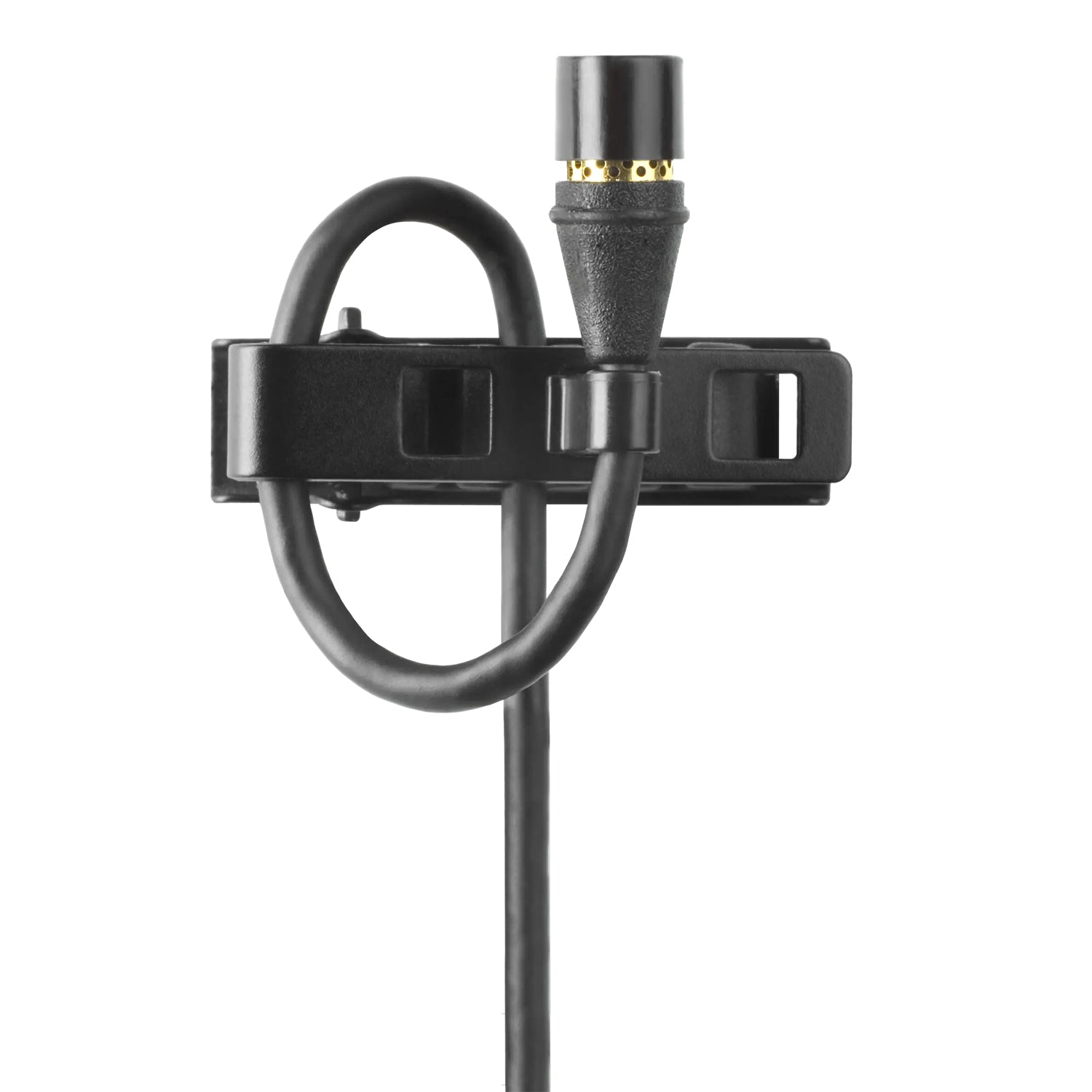

Shure MX150 Subminiature Lavalier Microphone

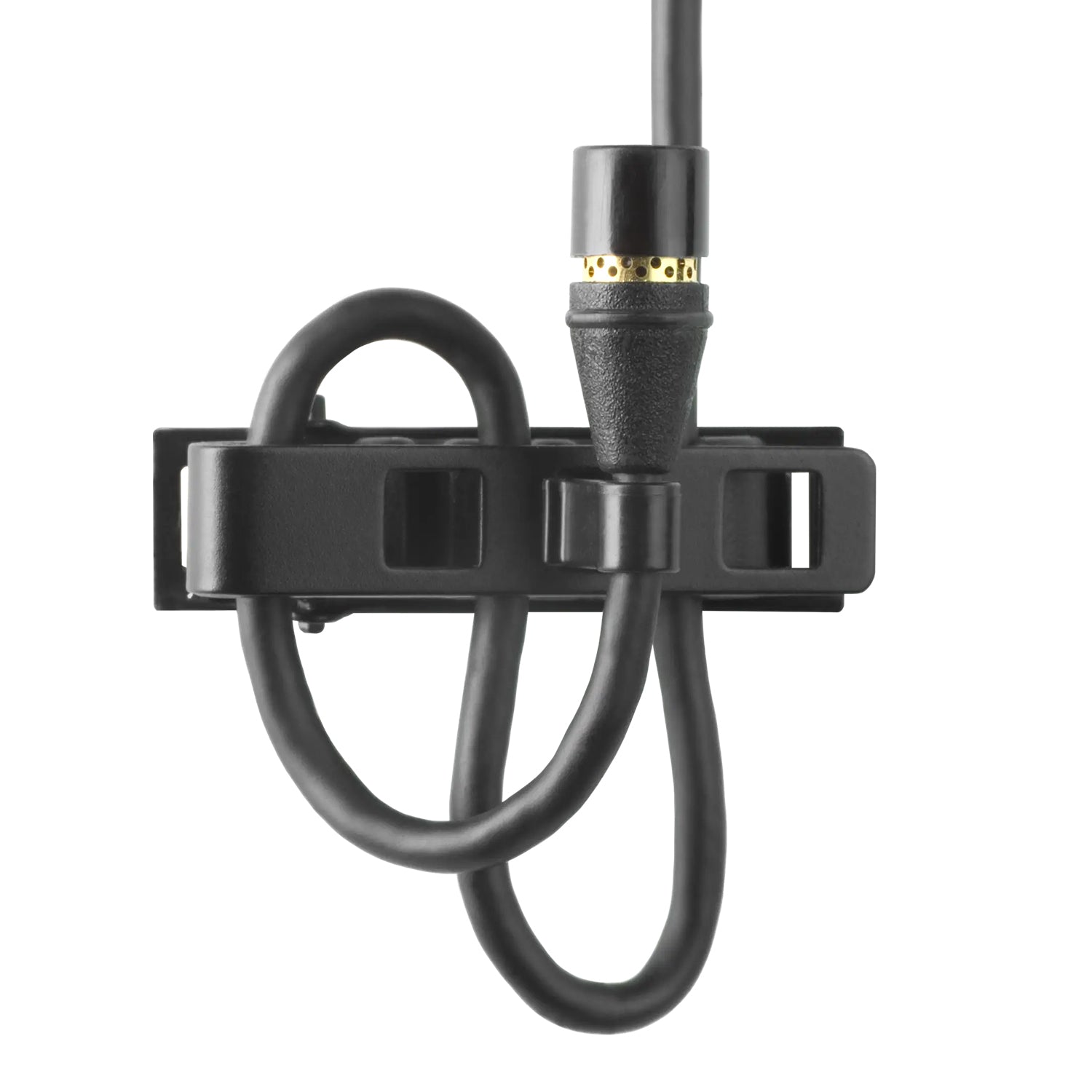

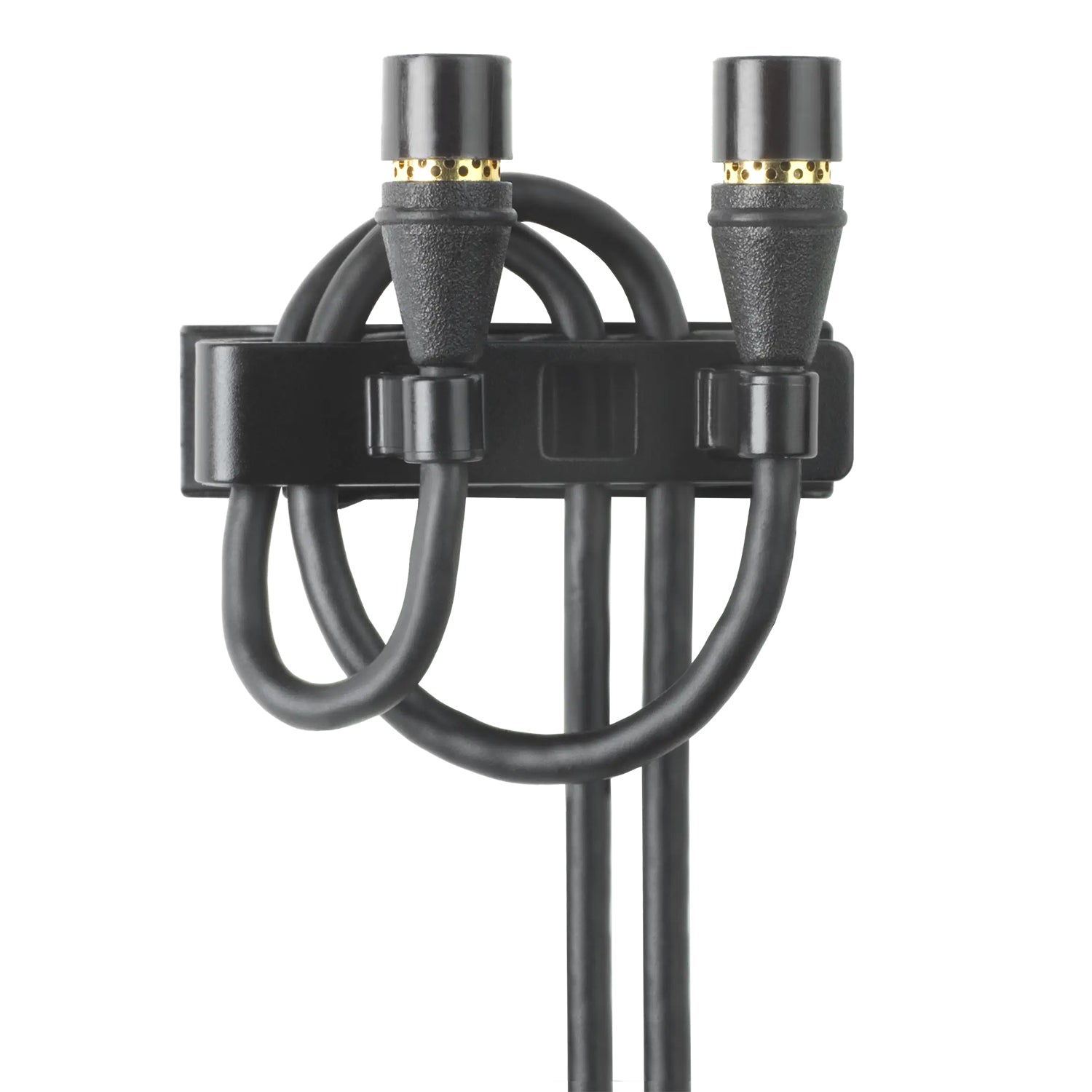

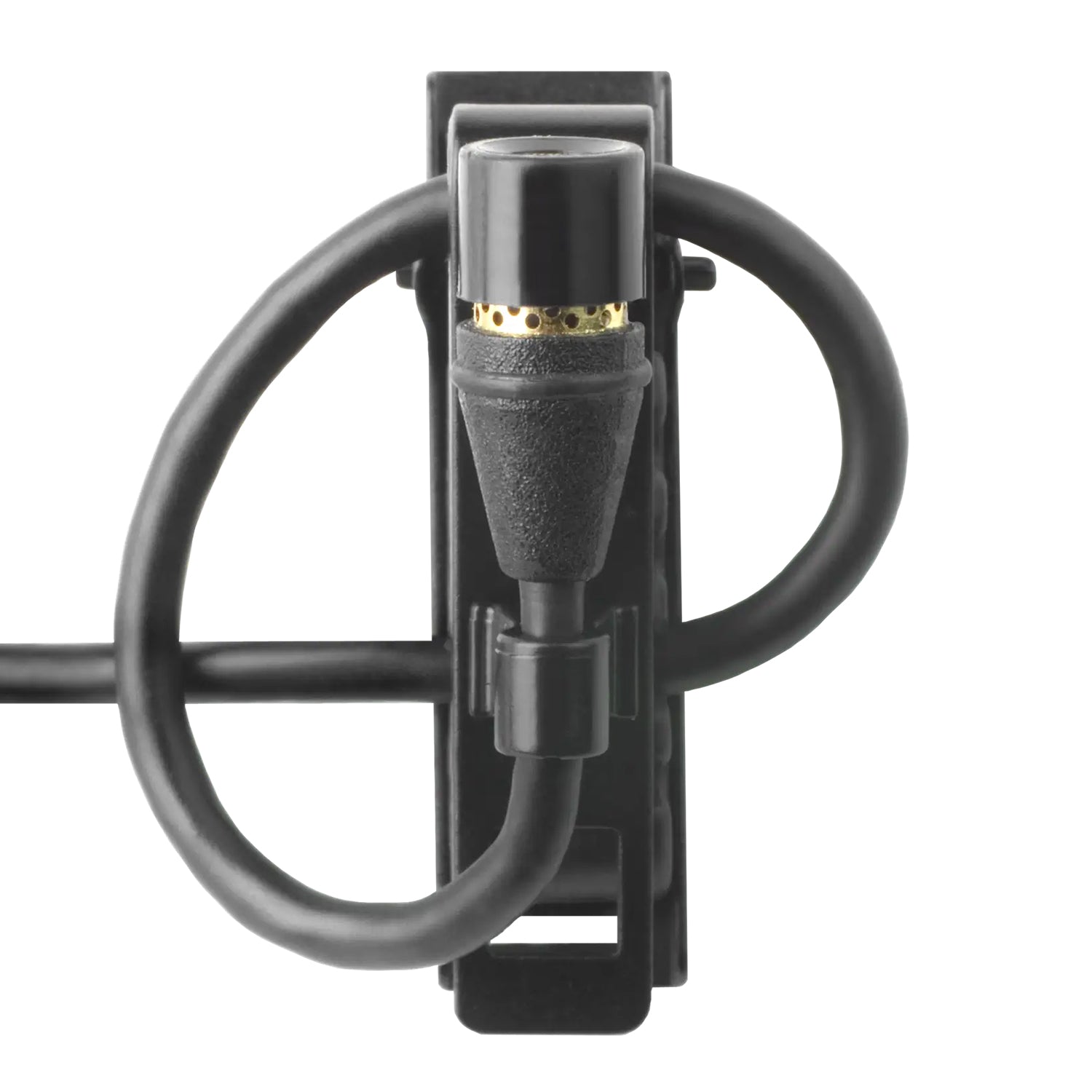

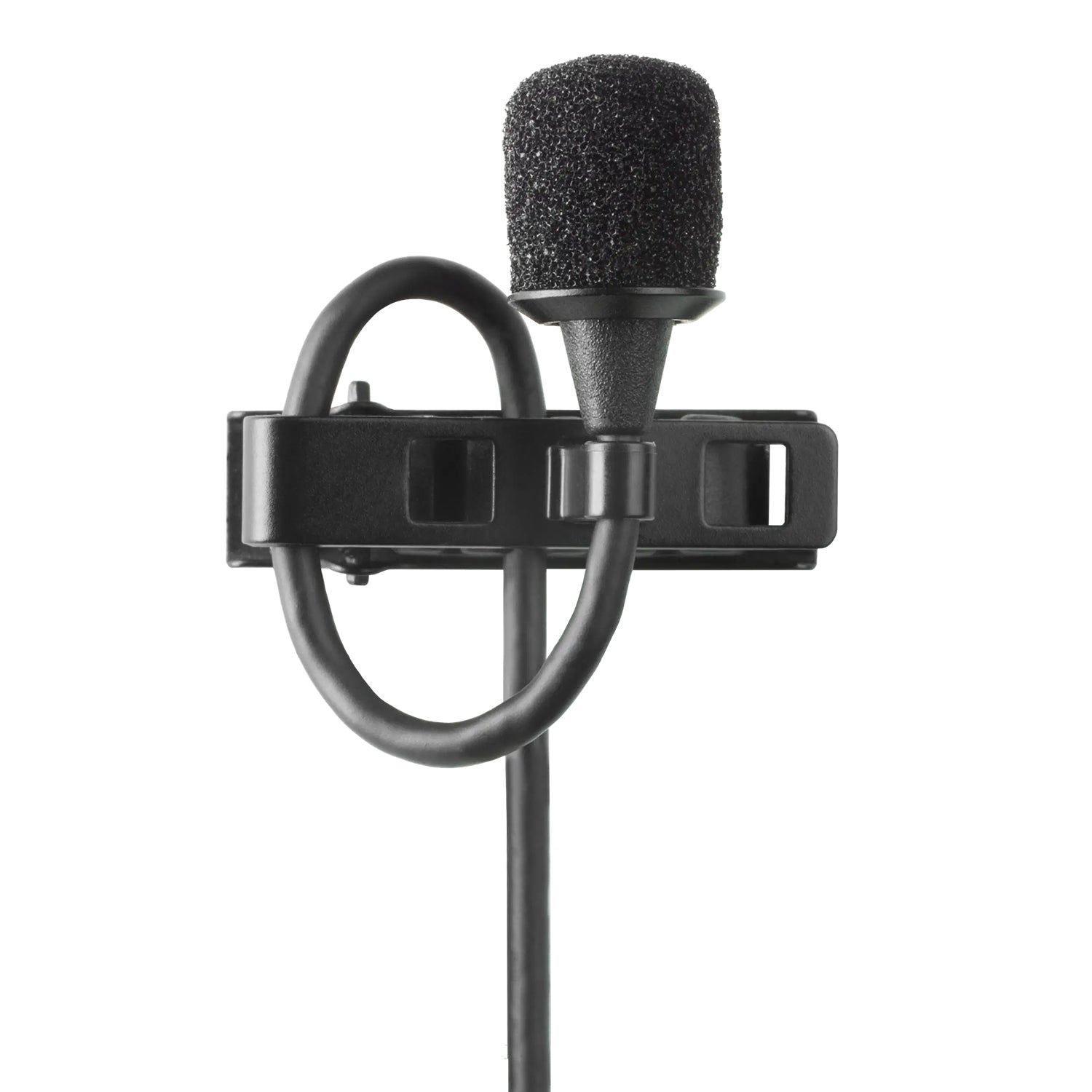

The MX150 is a professional subminiature electret condenser lavalier microphone ideal for use in speech and other applications requiring low-profile, discreet placement. Available with cardioid or omnidirectional patterns, the MX150 provides uncompromised sound quality and high reliability with minimal visibility for use in television broadcasting, corporate lectures, A/V teleconferencing, House of Worship, and sound reinforcement. CommShield®Technology offers superior RF immunity from cellular devices and digital bodypack transmitters. Each microphone is supplied with a snap-fit foam windscreen to minimize wind noise and a multi-position tie clip with integrated cable management to minimize cable handling noise.

• CommShield® technology helps reduce RF interference from wireless devices.
• Kevlar®-reinforced cable improves durability for daily professional use.
• Snap-fit acoustic caps allow quick replacement and maintenance.

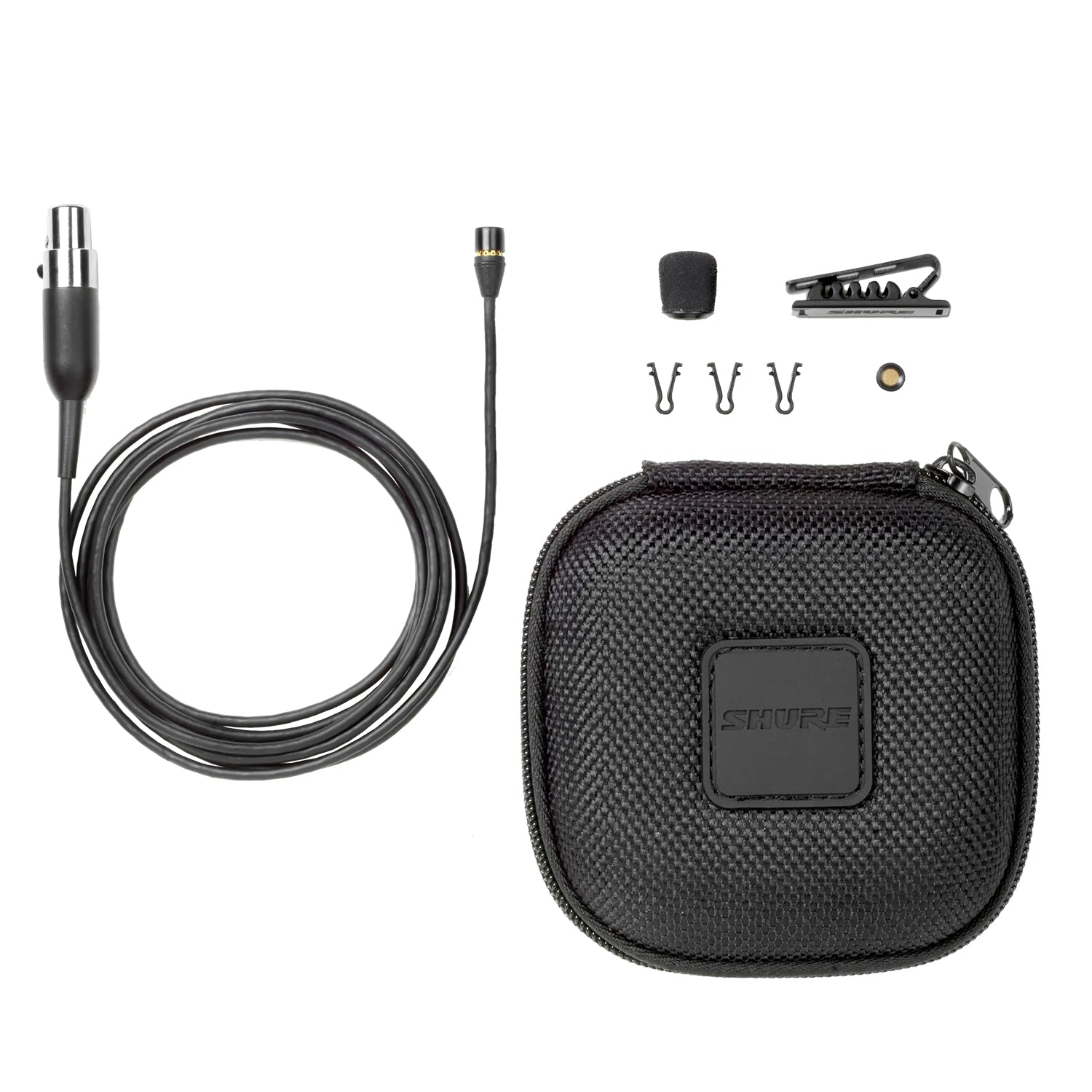

• Includes multiple mounting options for clothing, ties, and lapels.
• Suitable for corporate AV, broadcast production, theater, houses of worship, education, and conference applications.

General Specifications

Polar Pattern

• MX150/O: Omnidirectional
• MX150/C: Cardioid

Transducer Type

• Electret Condenser

Frequency Response

• 20 Hz – 20 kHz

Electrical Specifications

Output Impedance

• TQG: N/A
• XLR: 165 Ω

Sensitivity (Open Circuit Voltage @ 1 kHz)

• TQG: –51.0 dBV/Pa (3.0 mV)
• XLR: –39.0 dBV/Pa (11.0 mV)

Power Requirements

• TQG: 5 V DC (0.04–0.18 mA)
• XLR: 11–52 V DC Phantom Power (IEC-61938), <2.2 mA

Common Mode Rejection (XLR Only)

• Greater than 60 dB

Maximum SPL (1 kHz @ 1% THD)

TQG

• 2500 Ω Load: 147.5 dB SPL
• 1000 Ω Load: 147.5 dB SPL

XLR

• 2500 Ω Load: 134.5 dB SPL
• 1000 Ω Load: 129.5 dB SPL

Signal-to-Noise Ratio

MX150/O (Omnidirectional)

• TQG: 60.0 dB
• XLR: 59.5 dB

MX150/C (Cardioid)

• TQG: 57.5 dB
• XLR: 57.0 dB

Dynamic Range (@ 1 kHz)

MX150/O (Omnidirectional)

• TQG: 109.0 dB
• XLR: 90.5 dB

MX150/C (Cardioid)

• TQG: 111.0 dB
• XLR: 97.5 dB

Self Noise (Equivalent SPL, A-Weighted)

MX150/O (Omnidirectional)

• TQG: 34.0 dB
• XLR: 34.5 dB

MX150/C (Cardioid)

• TQG: 36.5 dB
• XLR: 37.0 dB

Clipping Level (1 kHz @ 1% THD)

TQG

• 2500 Ω Load: 2.0 dBV
• 1000 Ω Load: 1.5 dBV

XLR

• 2500 Ω Load: 1.0 dBV
• 1000 Ω Load: –4.5 dBV

Polarity

TQG

• Positive pressure on the diaphragm produces a positive voltage on Pin 3 with respect to Pin 1.

XLR

• Positive pressure on the diaphragm produces a positive voltage on Pin 2 with respect to Pin 3.

Physical Specifications

Weight

• TQG: 21 g (0.7 oz.)
• XLR: 121 g (4.3 oz.)

Operating Temperature

• –18°C to 57°C (0°F to 135°F)

Storage Temperature

• –29°C to 74°C (–20°F to 165°F)
