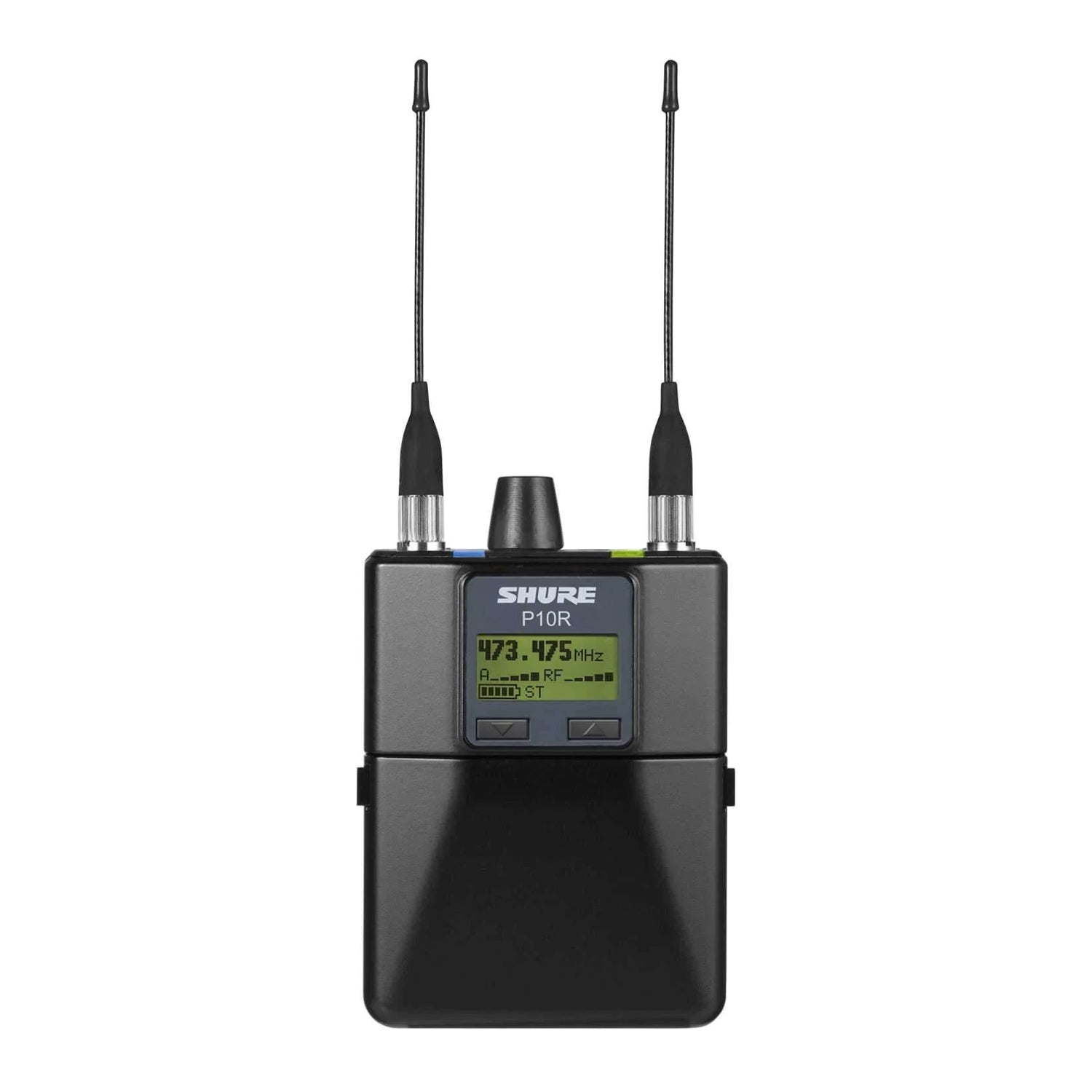

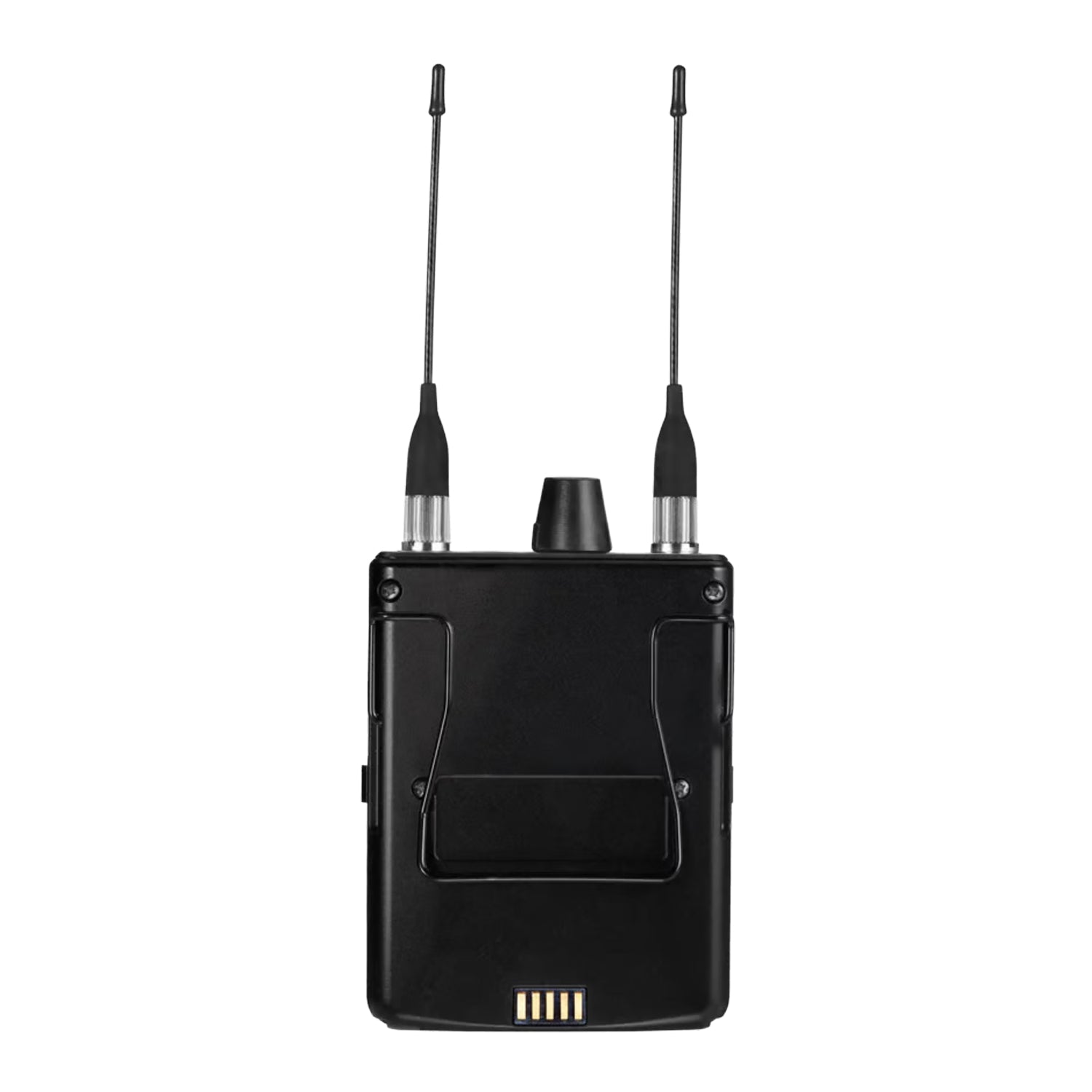

Shure P10R Diversity Wireless Bodypack Receiver for PSM1000

Shure P10R Diversity Wireless Bodypack Receiver for PSM1000

Features

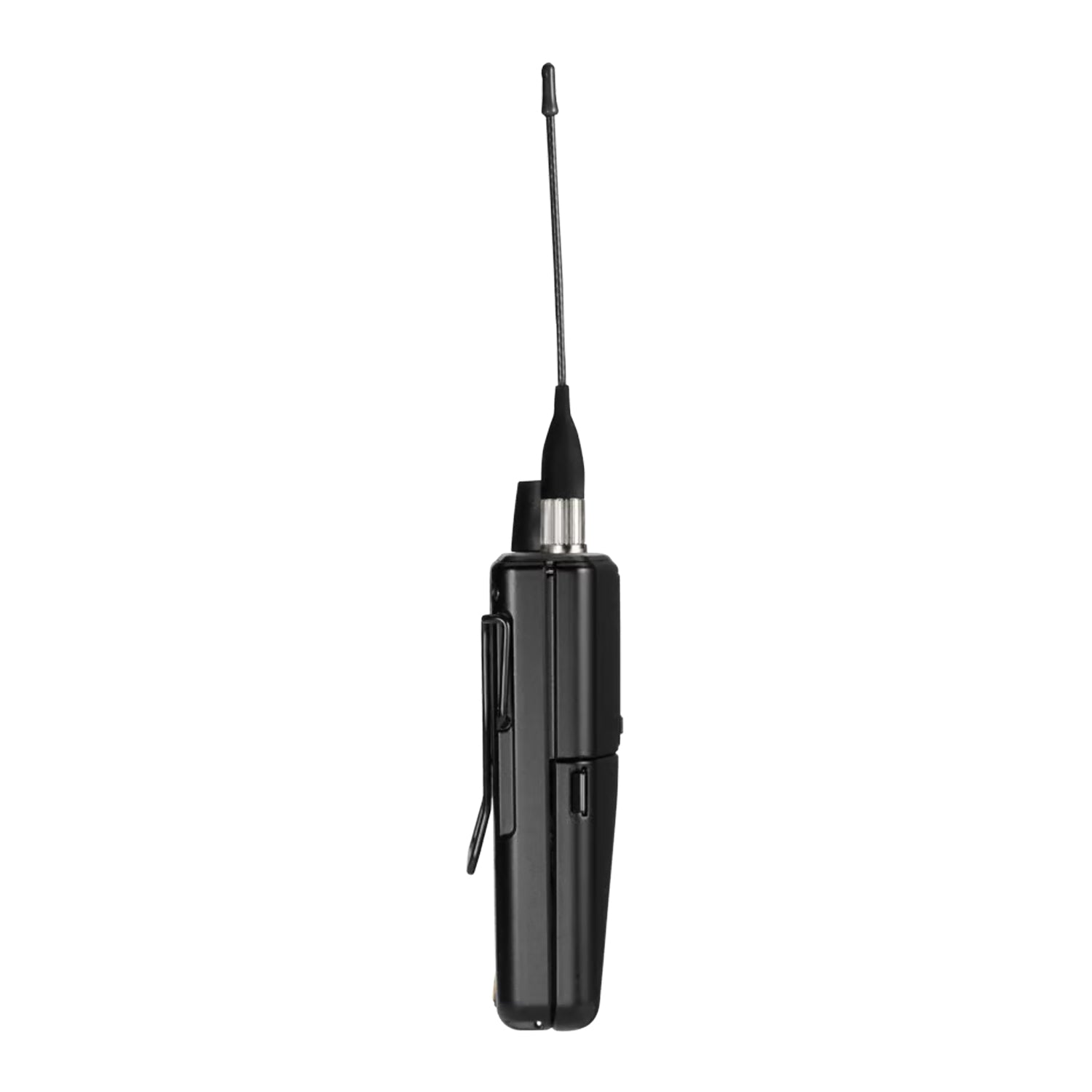

Ultra-thin, low profile bodypack allows discreet placement on the performer
Twin-antenna diversity virtually eliminates drop-outs
Precision front-end RF filtering reduces RF interference for a cleaner, stronger RF signal, fewer dropouts, and less audible artifacts
Customized, digitally enhanced stereo encoding provides expansive stereo separation
Automatic Gain Control prevents signal dropout due to RF overload and allows more channels to be used simultaneously
CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels on one bodypack
MixMode Technology allows the bodypack user to balance the level of two separate channels while simultaneously listening to both signals in both ears
RF Scan – instantly scan the RF environment on stage
Syncs to the transmitter quickly and easily over IR link using Scan and Sync
Selectable high-frequency EQ boost (+3/+6 dB @ 10 kHz)
Volume and balance controls

Frequency Band:

G10 (470-542 MHz)

Variant

Quantity:

Shure P10R Diversity Wireless Bodypack Receiver for PSM1000

Overview

Diversity wireless bodypack receiver offers premium features for use with the PSM 1000 In-Ear Personal Monitoring System. Includes RF Scan, twin-antenna diversity stereo encoding, CueMode for monitoring different mixes, and MixMode Technology.

Specs

RF Filter Range: Tri-Band: -3 dB at 30.5 MHz from the Center Frequency of Each Band
RF Gain: Active: 31 dB (Adjusts RF Sensitivity to Provide More RF Dynamic Range)
RF Sensitivity: 2.2 μV (20 dB SINAD)
Squelch Threshold: 22 dB SINAD (±3 dB), Default Setting
Adjacent Channel Rejection: >70 dB
Intermodulation Attenuation: >70 dB
Blocking: >80 dB
Image Rejection: >90 dB
Audio Output Power: 100 mW per Output (1 kHz @ <1% Distortion, Peak Power, @ 16 Ohms)
Minimum Load Impedance: 4 Ohms
Output Impedance: <1 Ohm

4-Band Parametric Equalizer:

Low-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 100 Hz
Low-Mid Selectable Gain: ±2, ±4, ±6 dB @ 160, 250, 400, 500, 630 Hz
Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
High-Mid Selectable Gain: ±2, ±4, ±6 dB @ 1, 1.6, 2.5, 4, 6.3 kHz
Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
High-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 10 kHz

Volume Lock:

Selectable: 0 to -70 dB
Limits Volume Adjustment Knob
Selected Value Analogous to Volume Knob Increment

Volume Limiter: Selectable: 0 to -48 dB in 3 dB Steps
Battery Life: 4-6 Hours (Continuous Use) with AA Batteries
Dimensions: 3.9 x 2.6 x 0.9" / 9.9 x 6.6 x 2.3 cm
Weight: 5.6 oz / 158.0 g without Batteries
