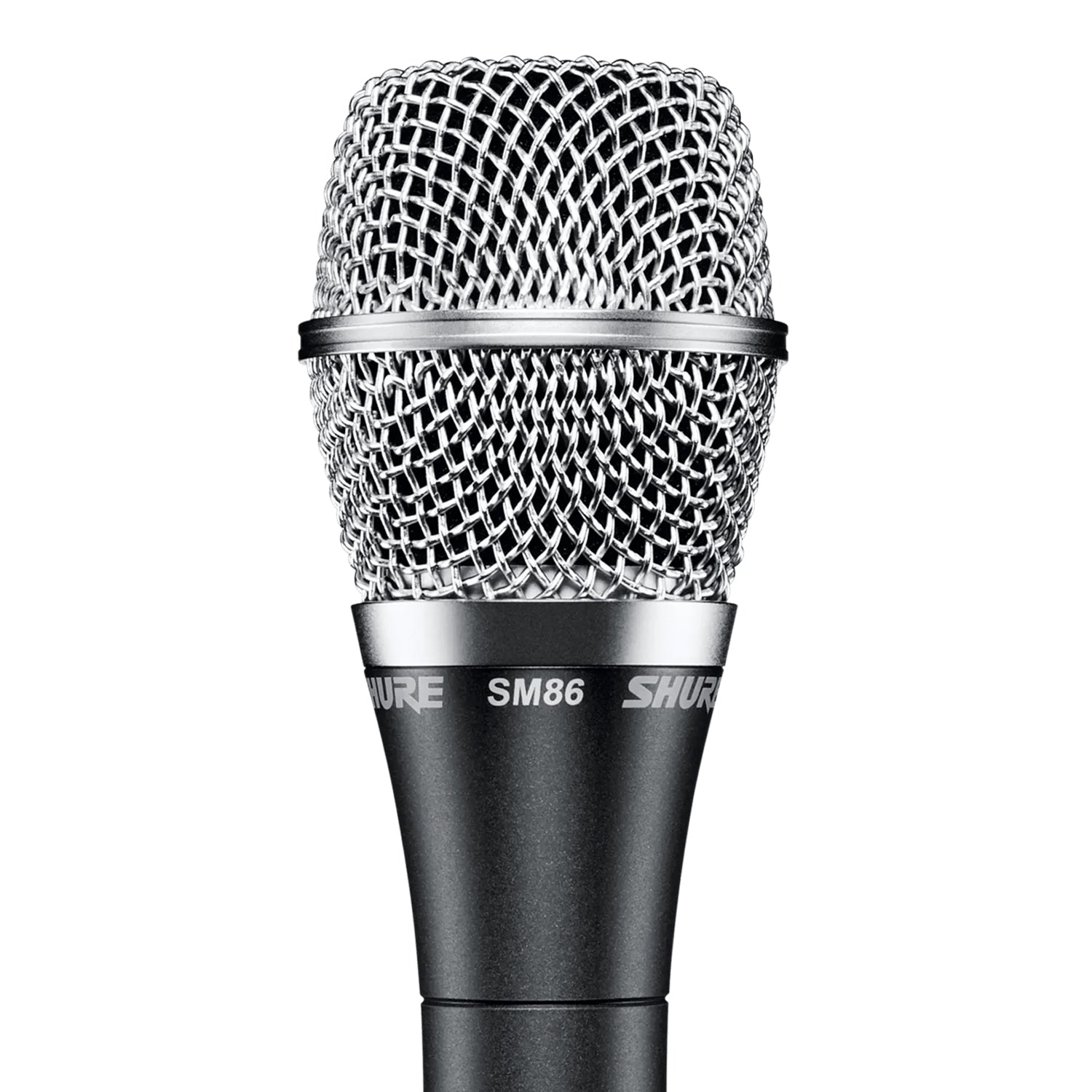

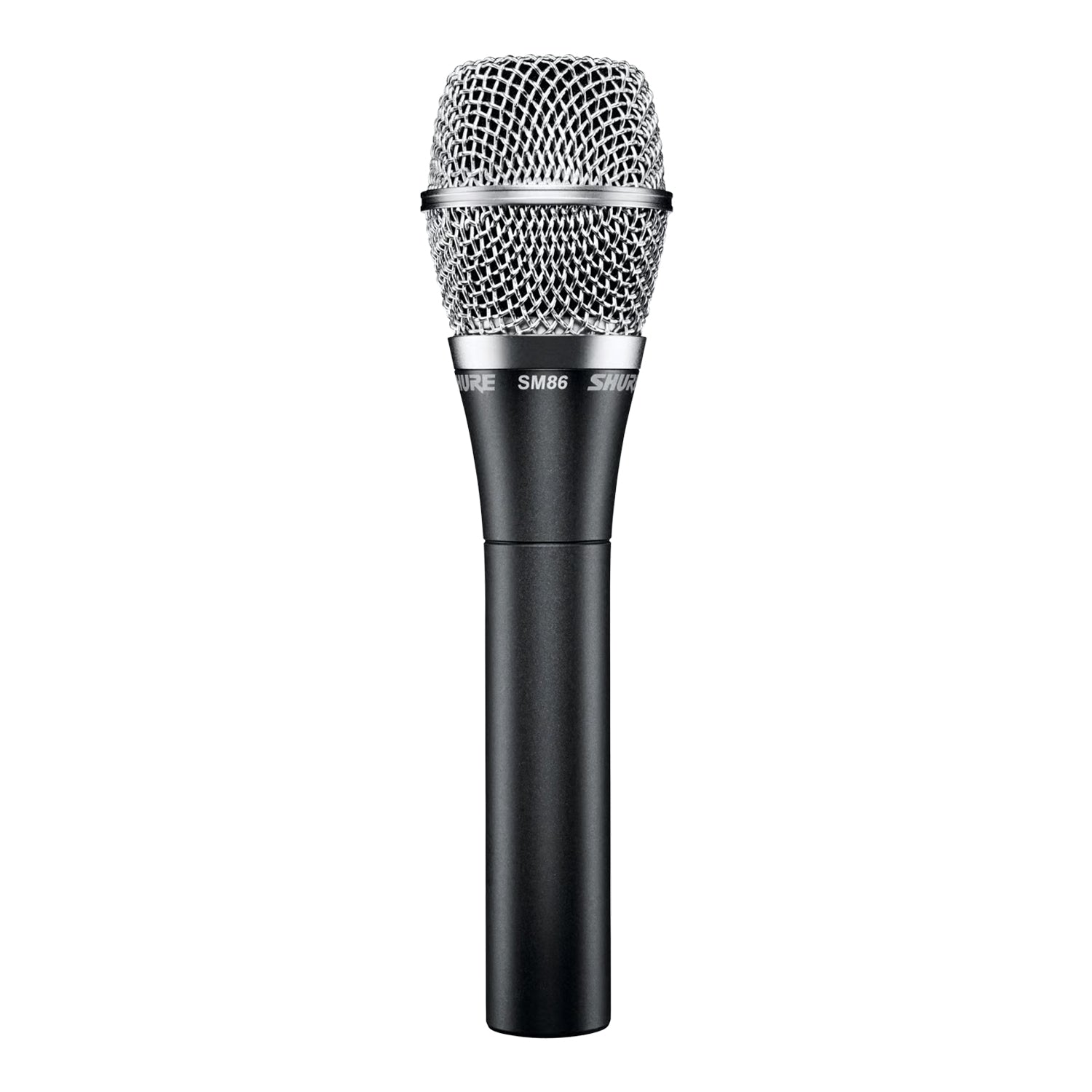

Shure SM86 Cardioid Handheld Microphone

Cardioid vocal microphone offers an extended high frequency response and rugged construction to withstand the rigors of touring. Features include a built-in 3-point shock mount to minimize handling noise and a 2-stage pop filter to reduce wind noise.

The Shure SM86 is a unidirectional (cardioid) condenser vocal microphone for professional use in live performance. An extremely rugged microphone, the SM86 withstands the rigors of touring while delivering a clear, studio-quality sound.

A cardioid pickup pattern isolates the main sound source while minimizing unwanted background noise. The built-in three-point shock mount minimizes handling noise, and a two-stage pop filter reduces wind and breath "pop" noise.

• Condenser cartridge for studio quality sound
• Tailored frequency response for a clear reproduction of vocals
• Rugged construction withstands the rigors of touring sound
• Cardioid polar pattern minimizes unwanted background noise
• Excellent choice for stage monitors and personal monitors
• Built-in three-point shock mount minimizes handling noise
• Two-stage pop filter reduces wind and breath noise

Type

• Condenser

Polar Pattern

• Cardioid

Frequency Response

• 50 Hz – 18,000 Hz

Sensitivity (at 1,000 Hz, open circuit voltage)

• -50 dBV/Pa (3.15 mV)
• 1 Pa = 94 dB SPL

Impedance

• 150 Ω at 1 kHz
• Recommended minimum load impedance: 600 Ω

Output Clipping Level

• +3 dBV (1.41 V) @ 1,000 Hz with a 1000 Ω load

Maximum SPL (at 1,000 Hz)

• 147 dB SPL (1% THD, 1000 Ω load)

Self-Noise

• 23 dB (typical, A-weighted)

Dynamic Range

• 124 dB (maximum SPL to A-weighted noise level, 1000 Ω load)

Signal-to-Noise Ratio

• 71 dB at 94 dB SPL (IEC 651)

Polarity

• Positive pressure on the diaphragm produces positive voltage on Pin 2 relative to Pin 3 of the output connector.

Power Requirements

• 11–52 V DC, 5.2 mA

Construction

• Dark gray enamel-painted die-cast body with a stainless steel grille

Connector

• 3-pin professional audio connector (male XLR)

Dimensions

• 183 mm (L) × 49 mm (W)

Weight

• 284 g
