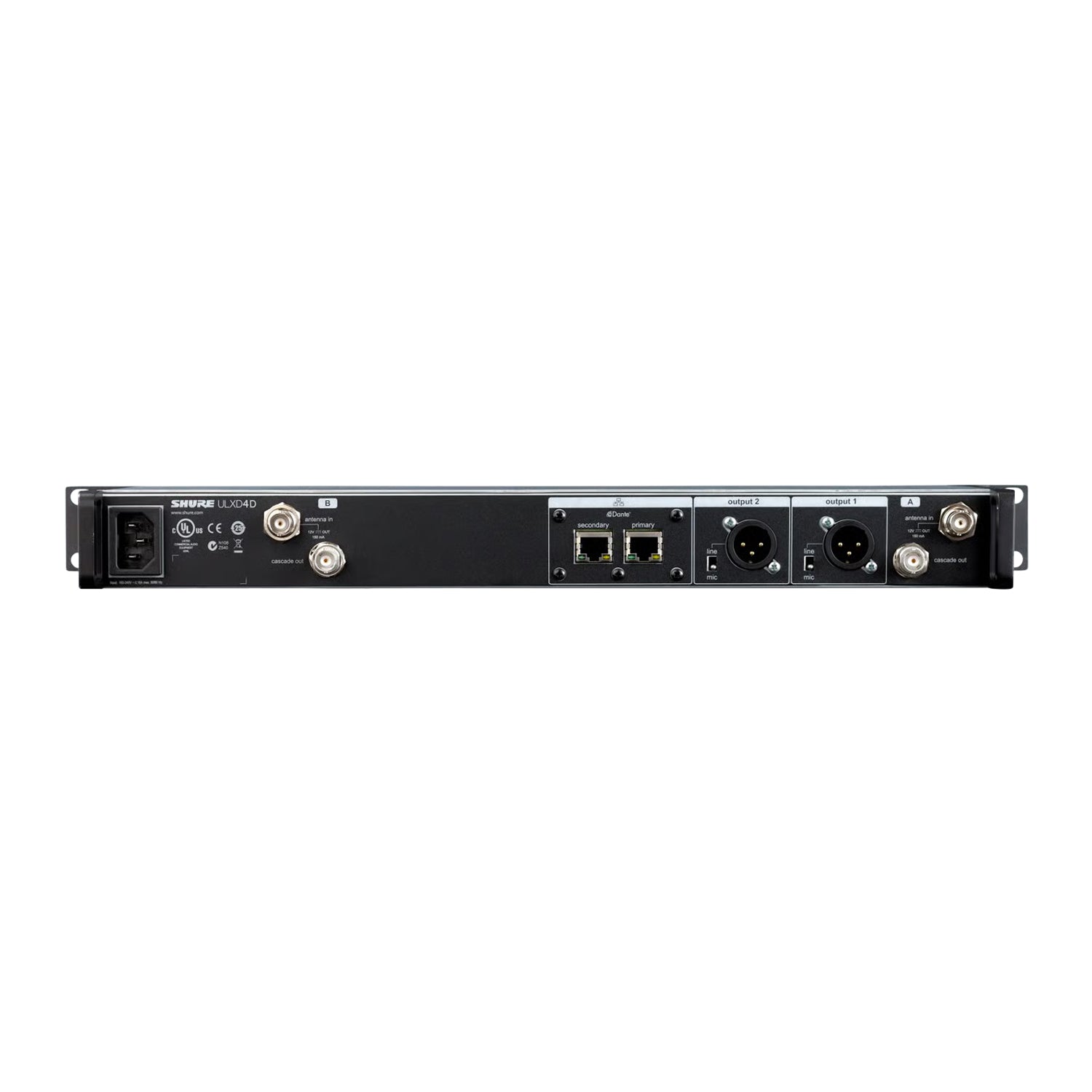

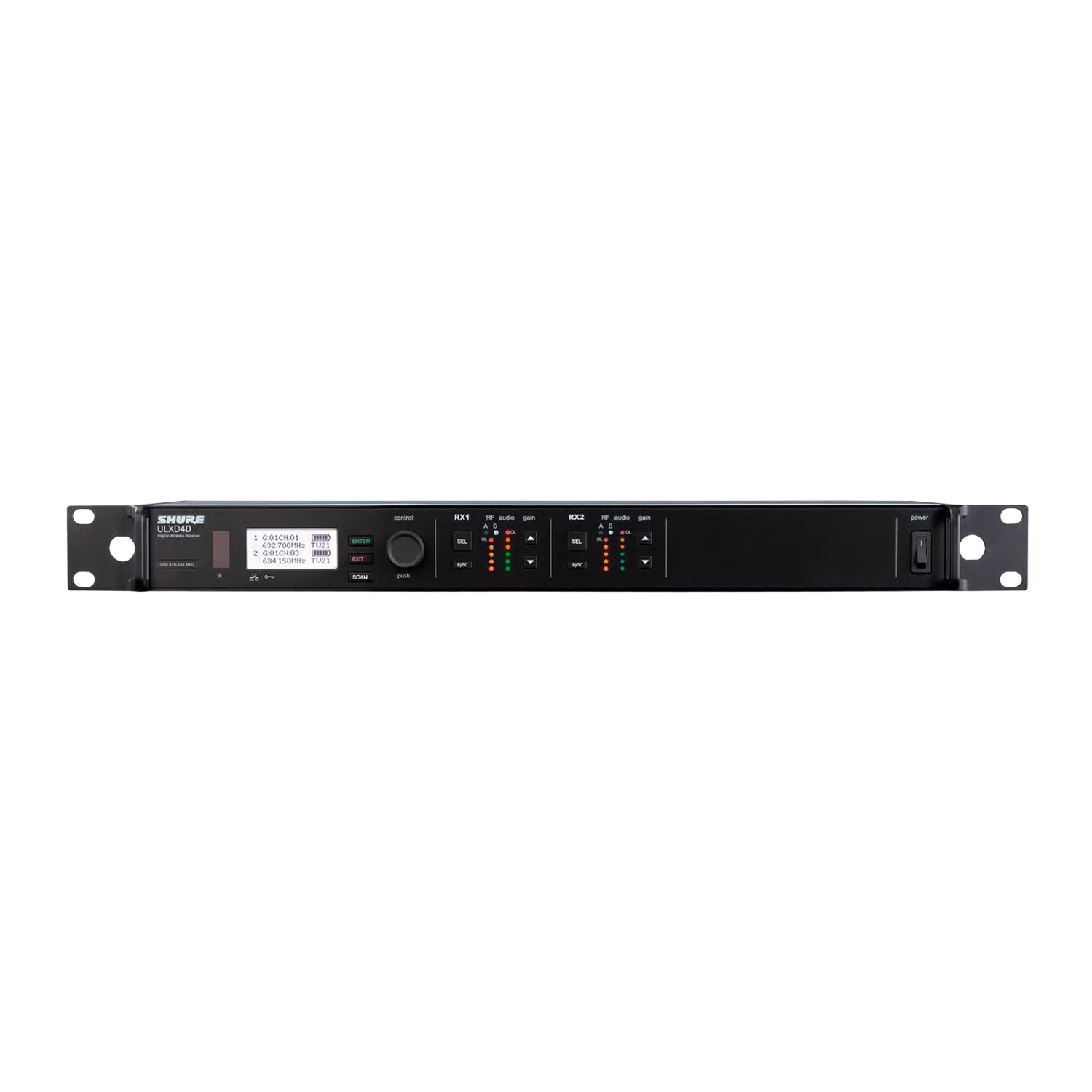

Shure ULXD4D Dual Wireless Receiver

The Shure ULXD4D Dual Channel Digital Wireless Receiver offers two channels of uncompromising audio quality, RF signal stability and efficiency, and advanced setup features in a single rack unit. Now featuring wide-tuning frequency bands, offering an expanded range of up to 166 MHz, (region dependent). Rugged, yet lightweight and compact, the all-metal chassis houses two independent receivers, each with its own audio and RF meters, gain control, and receiver outputs that can be either direct or summed for flexible signal routing.

With RF cascade and two Ethernet ports, units easily can share RF signal and be networked together for simplified frequency coordination and deployment. For networked audio applications, DANTE™ digital networking allows multiple channels of audio to be transmitted and received over a single Ethernet cable. When more compatible frequencies over shorter distances, High-Density mode can be enabled to dramatically increase the number of available open frequencies.

• Two receivers in a rugged 1RU metal chassis with internal power supply
• Expanded tuning range (up to 166 MHz, region dependent))
• Individual gain controls, LED meters, and XLR outputs for each channel
• Digital predictive switching diversity
• High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
• RF cascade ports allow distribution of RF signal to another unit
• Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
• Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
• AES 256-bit encryption-enabled for secure transmission
• Audio summing routes both audio channels to each XLR receiver output
• Dante™ digital networked audio over Ethernet
• Up to 60 dB independently adjustable gain for each channel
• Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
• Wireless Workbench® software integration for advanced coordination, monitoring, and control
• AMX/Crestron® control
• AXT600 Axient® Spectrum Manager compatible
• Yamaha® device ID allows simplified channel patching on CL consoles
• Intuitive front panel LCD menu and controls with lockout feature
• Audio and RF LED meters with peak indicator
• XLR connectors with switchable mic/line output level
• Remoteable ½ wave antennas

General Specifications

• Weight: 3.36 kg (7.4 lbs), without antennas
• Power Requirement: 100–240 V AC, 50/60 Hz, 0.26 A max.
• Dimensions (H × W × D): 44 × 482 × 274 mm (1.73 × 18.98 × 10.79 in.)
• Housing: Steel chassis with extruded aluminum construction

Audio Output

• Gain Adjustment Range: −18 to +42 dB in 1 dB steps (plus Mute setting)
• Output Configuration: Balanced XLR (Pin 1: Ground, Pin 2: Audio +, Pin 3: Audio −)
• Output Impedance: 100 Ω
• Full Scale Output:Line: +18 dBVMic: −12 dBV
• Mic/Line Switch: 30 dB pad
• Phantom Power Protection: Yes

Cascade Output

• Connector Type: BNC
• Configuration: Unbalanced, passive
• Impedance: 50 Ω
• Insertion Loss: 0 dB
• Application: Connects one additional receiver operating in the same frequency band

Networking

• Network Interface: Dual-port Ethernet (10/100 Mbps, 1 Gbps), Dante® Digital Audio
• IP Addressing: DHCP or Manual IP configuration
• Maximum Cable Length: 100 m (328 ft)

RF Input

• Connector Type: BNC
• Input Impedance: 50 Ω
• Spurious Rejection: >80 dB (typical)
• Bias Voltage: 12–13 V DC, 150 mA maximum per antenna (switchable on/off)
