TELEVIC Confidea D-MIC40SL Gooseneck Microphone

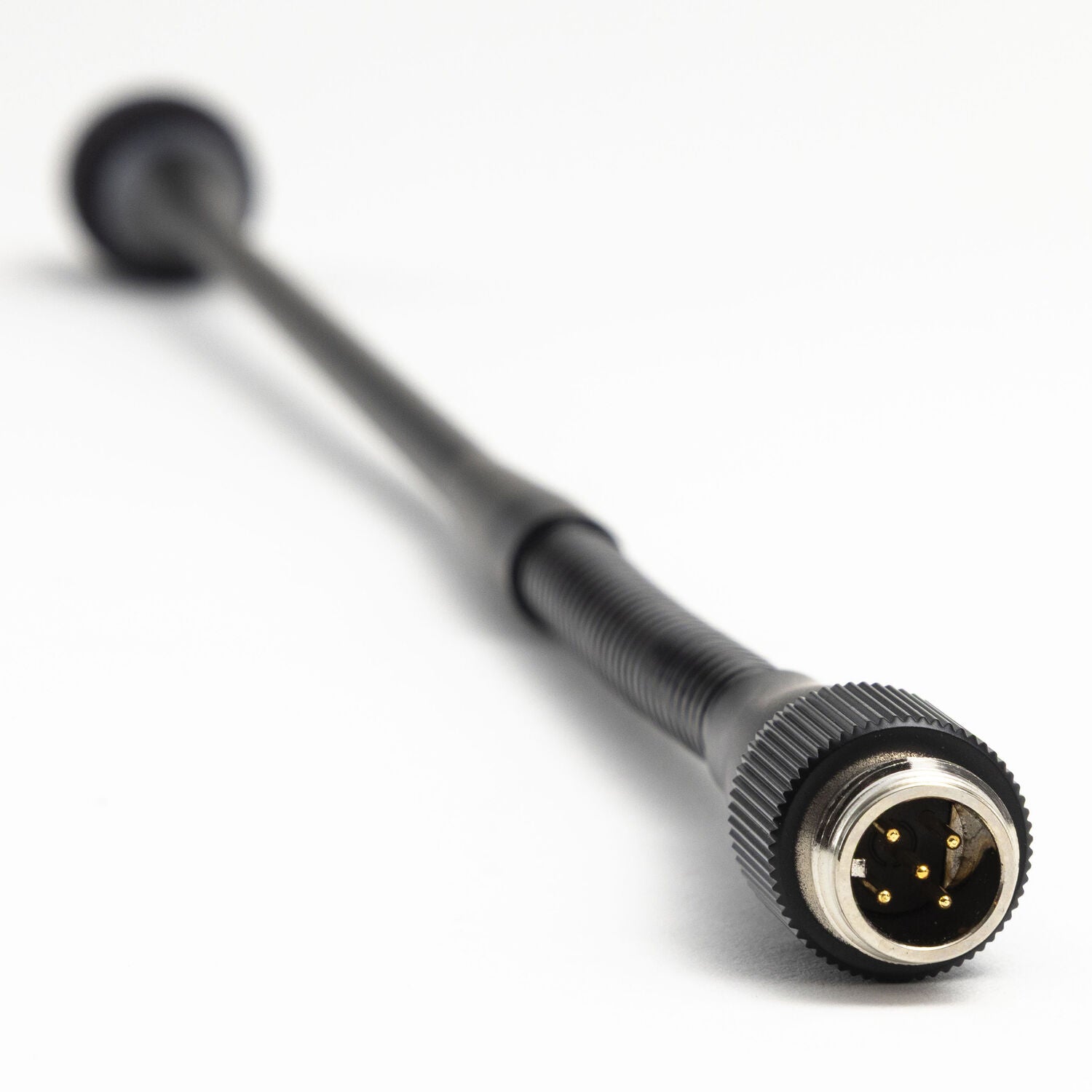

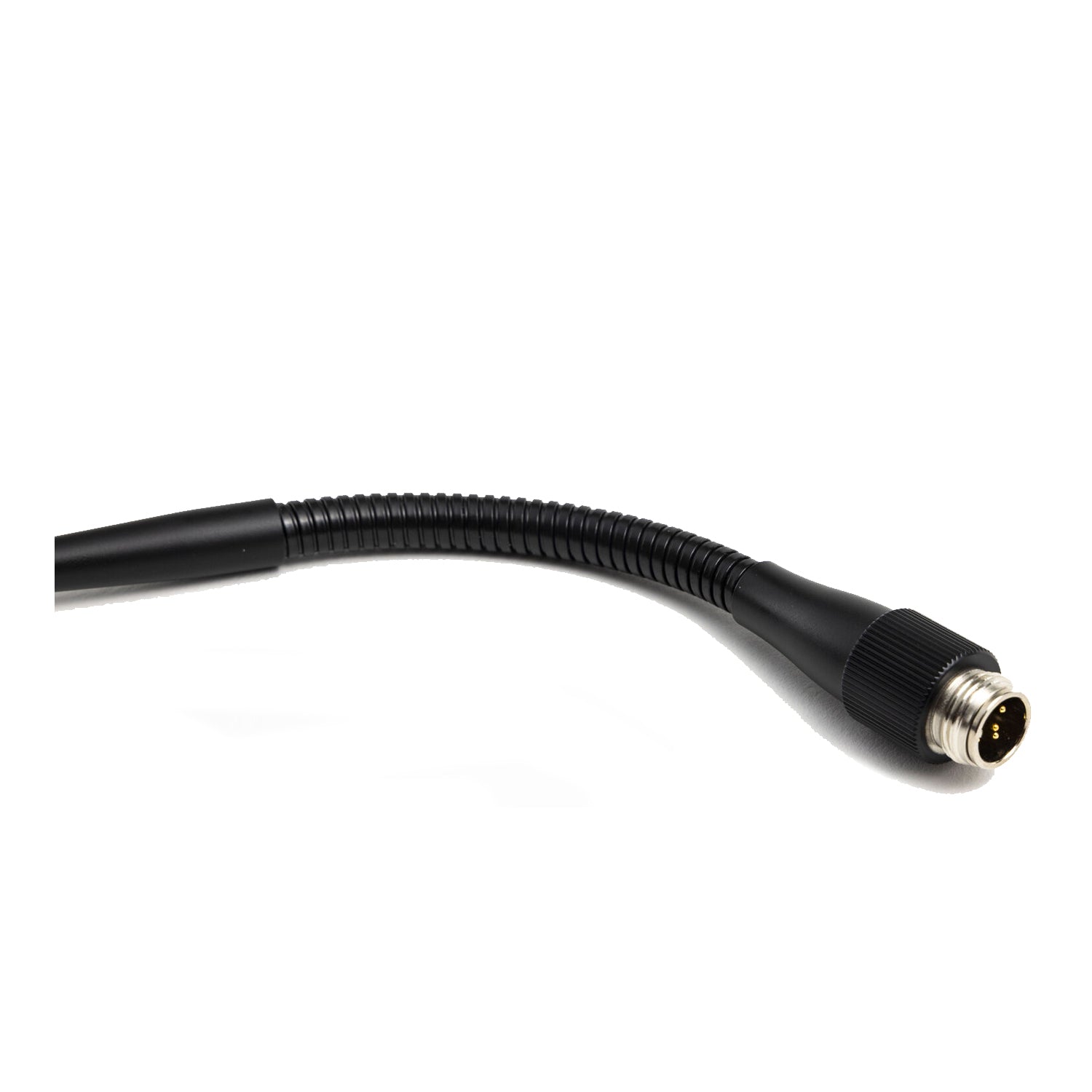

The removable gooseneck microphone is equipped with a screw lock connector for easy connection to the different delegate and interpreter units.

Its unidirectional response results in optimal performance even in environments with a lot of ambient noise.

The gooseneck design also allows for a large freedom of movement. Another important advantage is the very low susceptibility to interference from mobile phones.

Finally, the D-MIC SL microphones deliver a rich, natural sound. It enables longer and more comfortable meetings where participants experience less strain produced by traditional artificial and mechanical microphone sounds.

The light ring is dark (opaque) when the microphone is switched off, it lights up red when active, and green when in request.

• Optimized for low ambient noise pickup in meeting environments
• Durable metal (brass-based) construction for frequent repositioning
• Designed for secure plug-and-play replacement across compatible Confidea units
• Minimal visual design suited for professional conference table installations

Mechanical

• Material: Brass
• Color: Matt black (RAL 9011)
• Dimensions (W × H × D): 405 × 25 × 25 mm
• Packed Dimensions (W × H × D): 480 × 50 × 50 mm
• Weight: 100 g
• Packed Weight: 175 g
• Stem Diameter: Flexible part 8 mm / Rigid part 6.3 mm

Electrical

• Transducer Principle: Back electret (condenser)
• Operating Principle: Pressure gradient
• Polar Pattern: Unidirectional (cardioid)
• Nominal Conditions: Bias resistor = 1k2, Vdd = 3.3 V DC, 1 Pa = 94 dB SPL
• Maximum SPL: 110 dB SPL @ 1 kHz (1% THD+N)
• Signal-to-Noise Ratio: > 67 dB(A)
• Free Field Sensitivity: -40.5 ±2 dBV @ 1 Pa (1 kHz)
• Power Supply: 3.3 V DC, 0.5 mA
• Consumption: 0.5 mA (without LED ring), max 25 mA (with LED ring)
• Connection: Screw-lock
