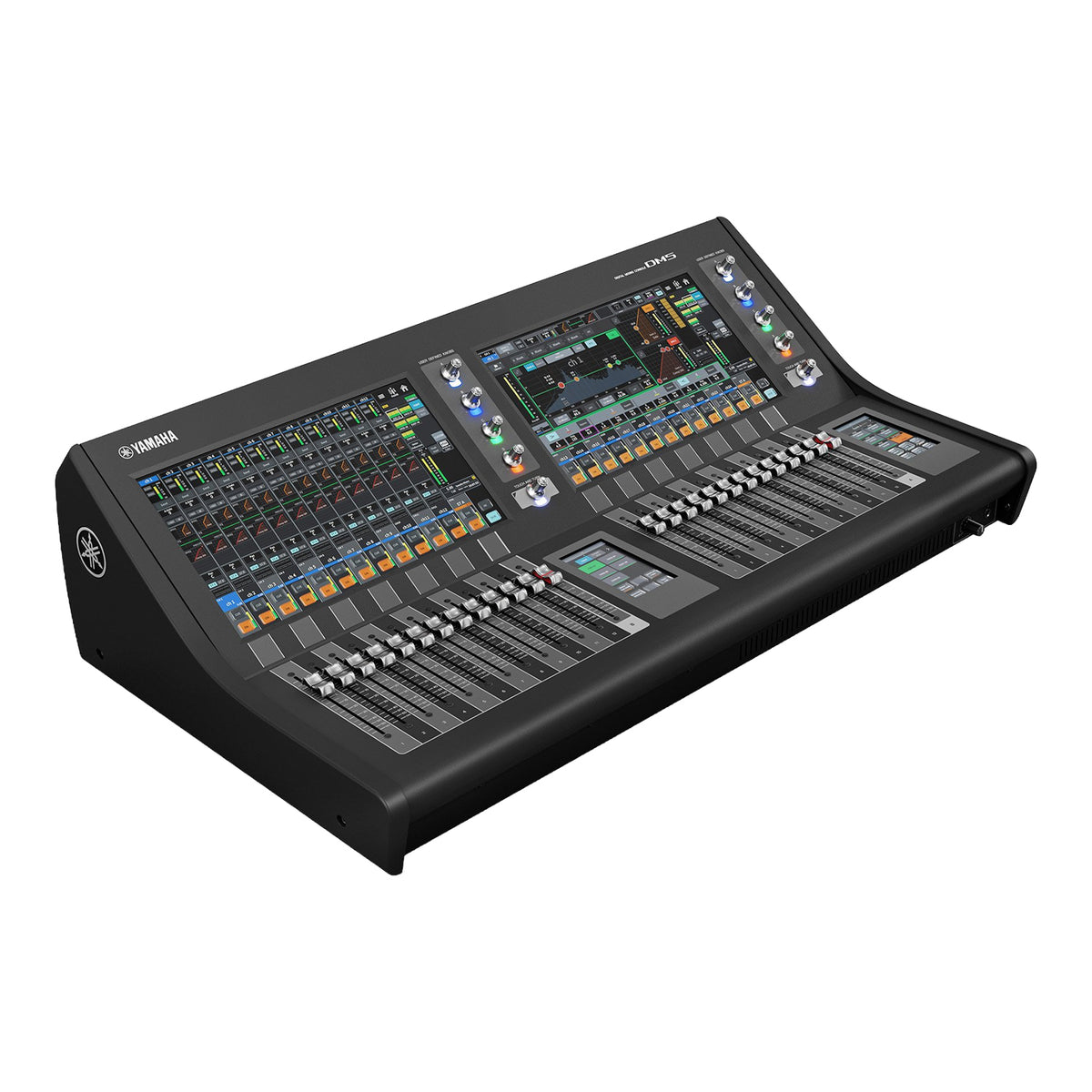

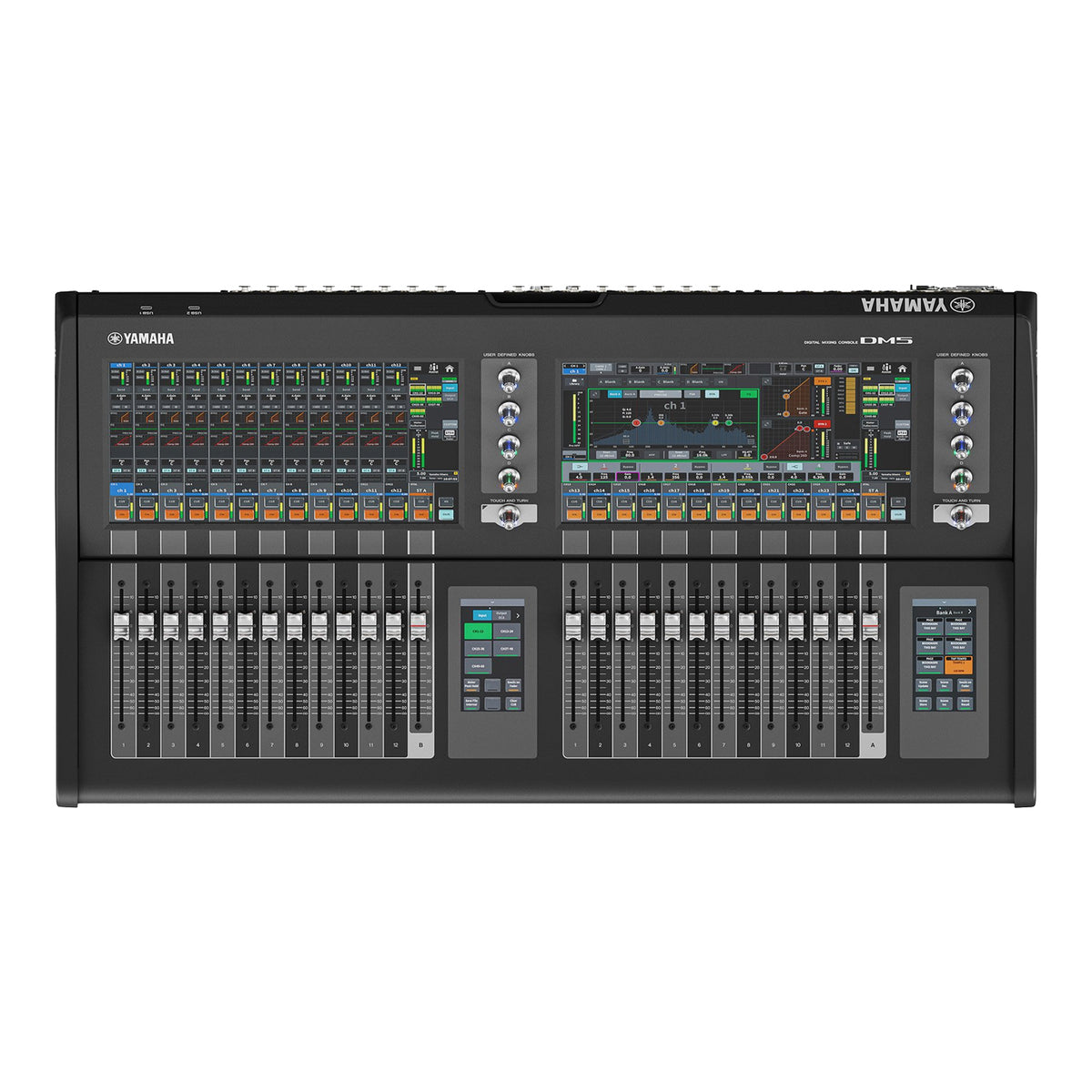

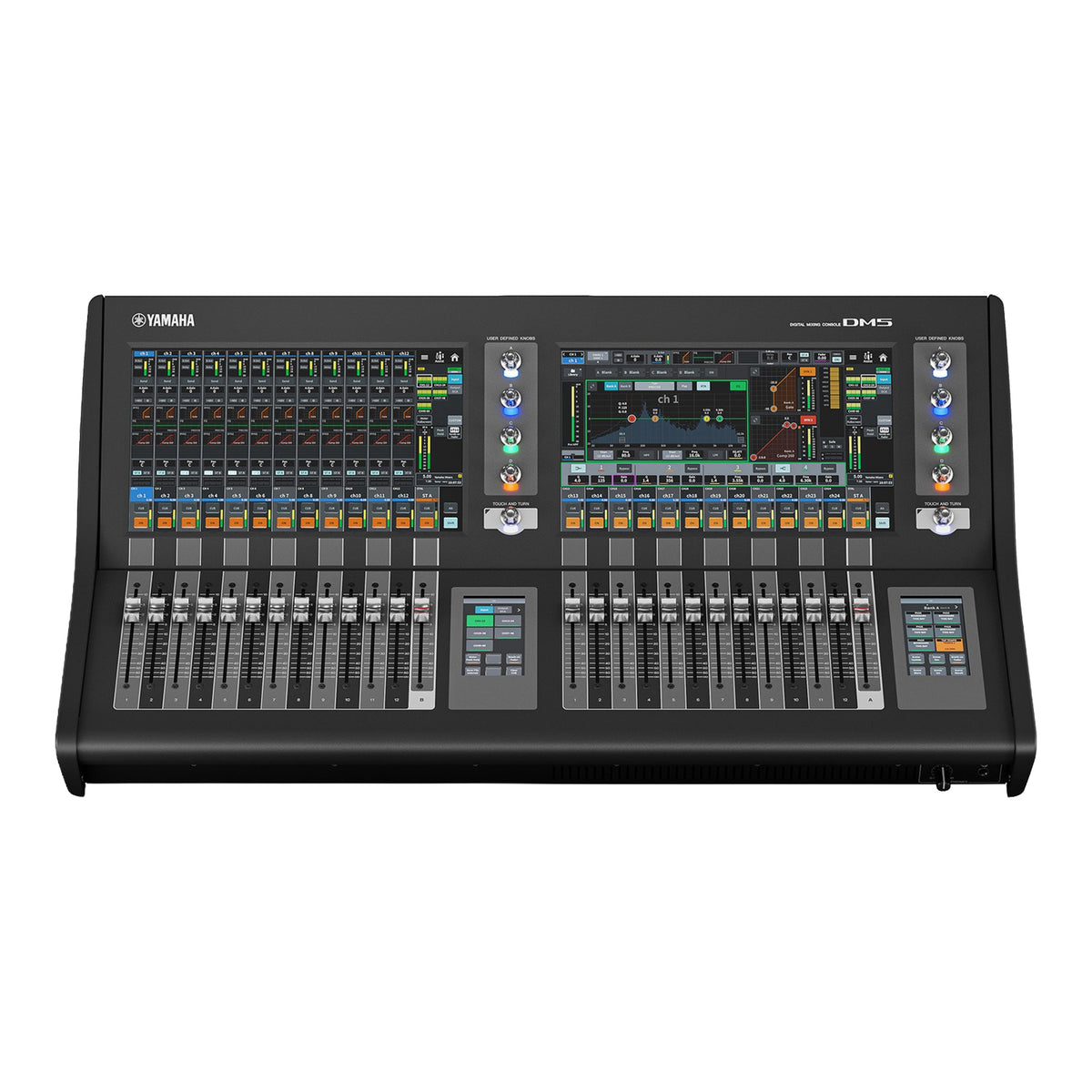

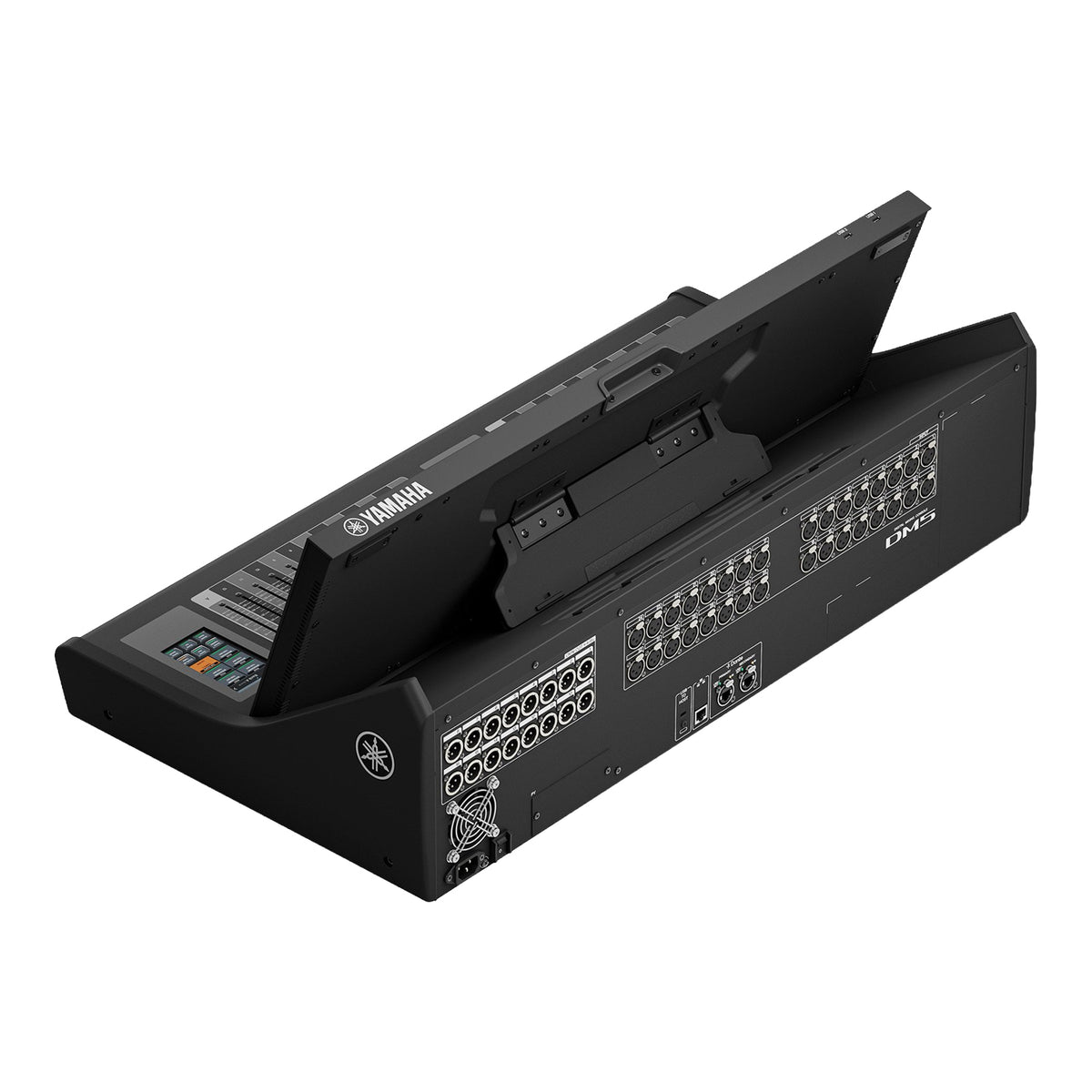

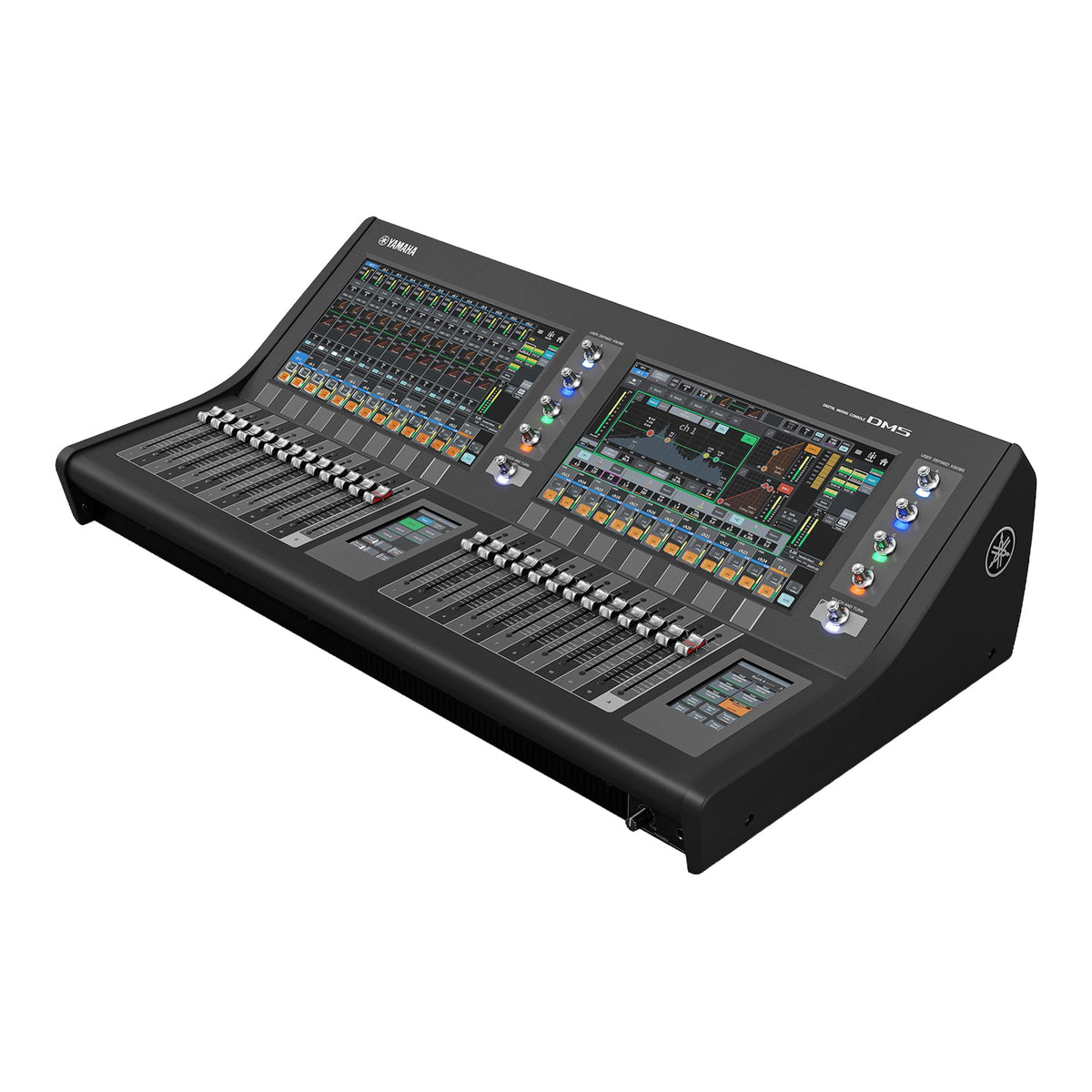

The Yamaha DM5 is a 60-channel, dual-bay digital mixing console built on the DM7 Series engine, bringing large-format workflow to a compact, transportable frame. It processes 60 mono inputs at 96 kHz across 24 mix buses, 12 matrices, and 2 stereo buses, with 32 analog inputs, 16 analog outputs, and 64×64 Dante networking onboard. Twin 13.3" multi-touch displays, two 4.3" utility touchscreens, and 26 motorized faders keep critical controls within reach. It's well suited for corporate events, houses of worship, theater, broadcast, and small to mid-sized live sound, with full show file compatibility across DM5 and DM7 consoles.
The DM5 is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM5 is configured with 26 faders and a 2 x 13.3” + 2 x 4.3” multitouch screen with glass keys.
Mixing Capacity
Input Channels
Mix Buses
Matrices
Stereo Buses
Mono Buses
- 1 (Stereo B can be changed)
Cue Buses

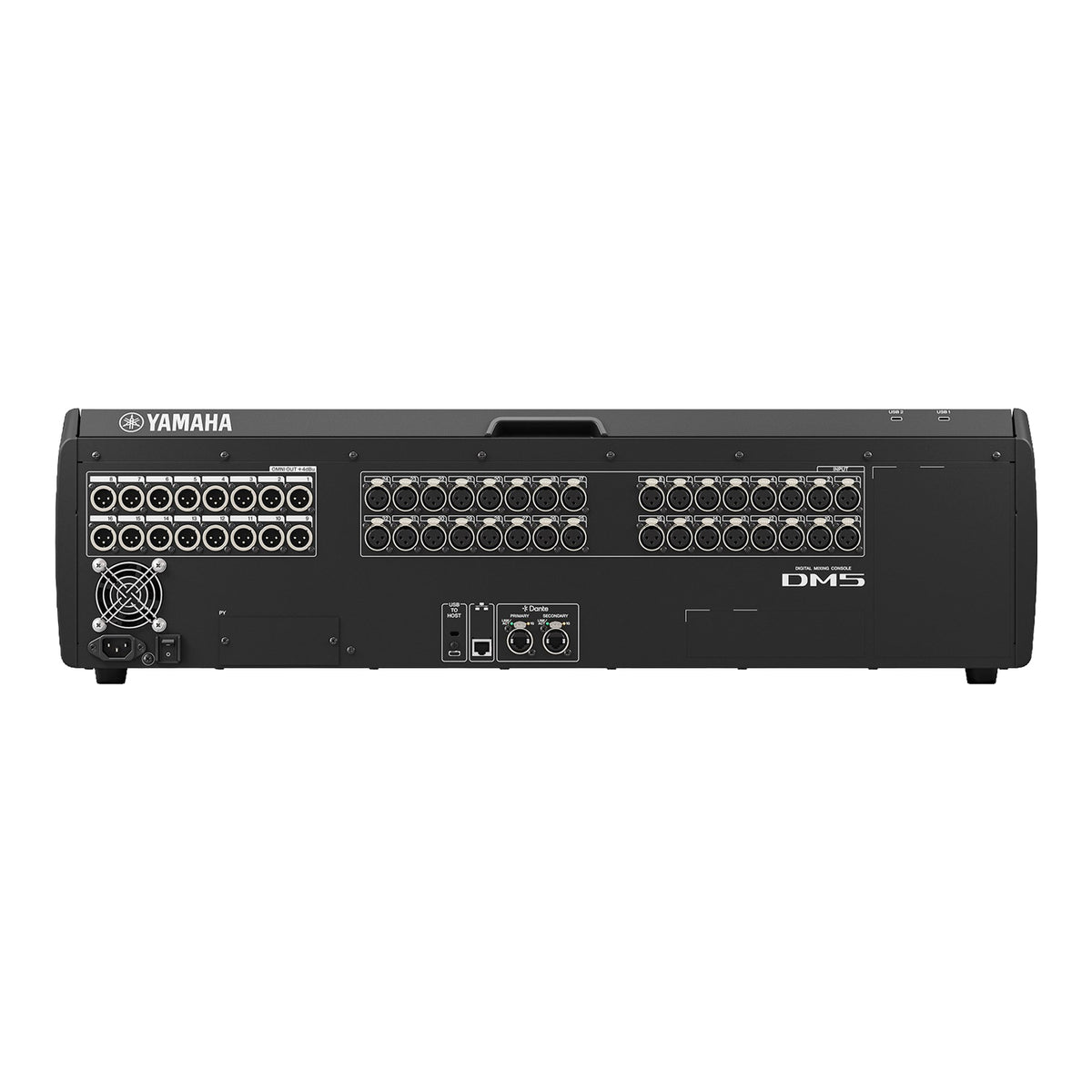

I/O Connectors
Analog Input
Analog Output
Dante
Expansion Slot (PY Slot)
MIDI
- No (MIDI protocol supported)
USB TO DEVICE
- 2 (USB Type-C for File Save/Load, and 2 Track Rec/Play)
USB TO HOST
Ethernet
Meter Bridge
Phones
AC
Scene Memory
Number of Scenes
Recall Safe
Focus Recall
Fade Time
Selective Load / Save
Global Paste
Input Channel Functions
Input A/B
Gain Compensation
Digital Gain
Attenuator
HPF
- 20 Hz to 2,000 Hz, -6/-12/-18/-24 dB/oct Selectable
PEQ
- 4 Band Full PEQ (4 algorithms, RTA overlay supported)
Dynamics 1
- Legacy Comp / Comp260 / Gate / De-Esser / Expander / Ducking / FET Limiter / Diode Bridge Comp
Dynamics 2
- Legacy Comp / Comp260 / Gate / De-Esser / Expander / Ducking / FET Limiter / Diode Bridge Comp
Input Delay
Pan
- Center Nominal / LR Nominal
DCA Group
- 12 (Output DCA supported)
DCA Rollout
MUTE Group
Number of Inserts
- 4 slots on 1 insert point
Dan Dugan Automixer
- Yes (12ch, expandable up to 64 channels with Dugan Automixer License)
Direct Out
Output Channel Functions
PEQ
GEQ
Dynamics 1
- Legacy Comp / Comp260 / Gate / De-Esser / Expander / Ducking / FET Limiter / Diode Bridge Comp
Output Channel Delay
MUTE Group
Number of Inserts
- 4 slots on 1 insert point
Premium Rack
Number of DSP Resources
Mountable Plug-ins
- RND Portico5033 / RND Portico5043 / Portico 5045 / U76 / Opt-2A / Comp276/ Buss Comp 369 / MBC4 / DaNSe / EQ-1A / Equalizer601 / Dynamic EQ / Dynamic EQ4 / REV-X / OpenDeck / Analog Delay / Max100 / Vintage Phaser /Dual Phaser / HQ. Pitch
Effect Rack
Number of DSP Resources
Number of Effect Types
EQ Rack
Number of DSP Resources
Number of Effect Types
Mountable Devices
- 31BandGEQ / Flex15GEQ / 8Band PEQ (RTA overlay supported)
Dante
Number of I/O Channels
Number of I/O devices that can be discovered from the console
Number of I/O devices that can be mounted
Number of I/O devices with HA remote control
Dante Patch from Console
USB to Host
Number of Audio I/O Channels
USB MIDI
Monitor
Solo Mode
Oscillator
- Sine Wave 1ch / Sine Wave 2ch / Pink Noise / Burst Noise
Other Functions
Port to Port
GPI
MIDI
OSC Server
DAW Remote
Nuendo Live: Control Integration
Virtual Soundcheck
Wireless Mic Monitoring
RTA
Delay Compensation
Output Port Delay
Sub In
User Levels
Channel Link
Temporary Channel Link
Multi Language Channel Names
Mix/Matrix to Input
Assist
- Yes (HA / Naming / Comp / Fader)
User Interface
Displays
- 13.3” multi-touch x 2, 4.3” multi-touch x 2
Faders
Channel Name / Color Displays
Custom Fader Banks
Shift Keys
User Defined Keys
- Glass Keys: 12 (6 + 6), Screen: 12 (6 keys x 4 bank)
User Defined Knobs
- Yes (by 4 encoders next to the screen)
Touch and Turn Knobs
Rack Mountable
Software
Editor
StageMix
MonitorMix
Console File Converter
ProVisionaire Control PLUS/Kiosk
Physical
Dimensions (W x H x D)
- 826 x 235 x 441 mm (32.6” )
- 32.6” x 9.3” x 17.4”
Weight
Power
Power requirements
Power consumption
Environmental
Operating temperature range
Storage temperature range
