City Theatrical Multiverse Studio Kit 900MHz/2.4GHz

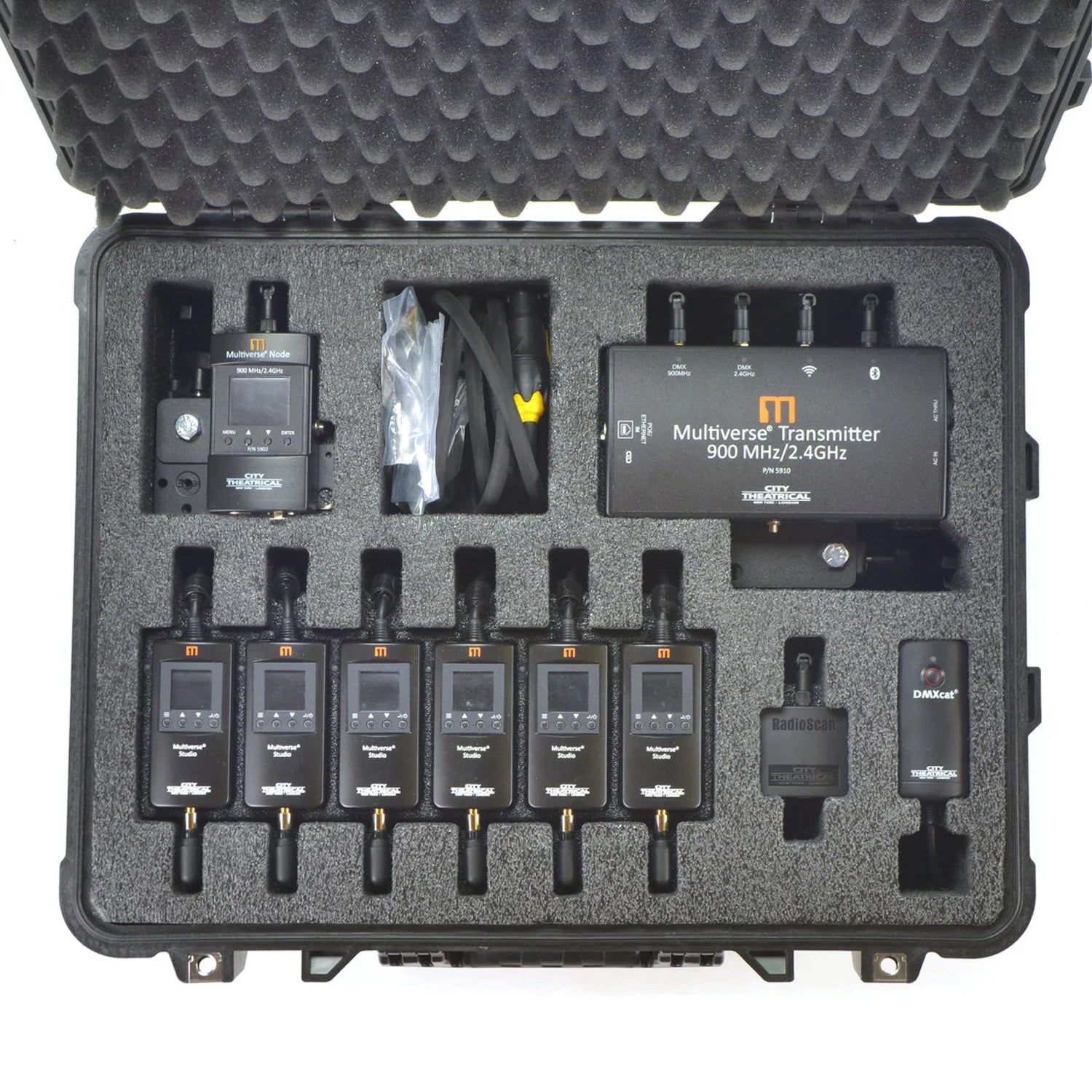

The Multiverse® Studio Kit 900MHz/2.4GHz brings the advanced technology of the dual band Multiverse wireless DMX/RDM system to the film and video world, featuring Receivers with 20 hour battery life and contactless charging in an easy to use kit. The Multiverse Studio Kit includes: six battery powered Multiverse Studio Receivers, one Multiverse Transmitter with hanging bracket
and clamp (for multi universe broadcasts), one Multiverse Node with hanging bracket and clamp (for single universe broadcasts), one DMXcat Multi Function Test Tool (to turn on and troubleshoot any lighting fixture on set), one RadioScan Spectrum Analyzer (for broadcast planning), and various accessories to keep your equipment organized and charged. The Multiverse Studio Kit provides all the tools lighting technicians need to quickly plan, setup, and operate wireless DMX/RDM on set.

• Contactless Charging: The Multiverse Studio Kit has contactless charging in an easy to use kit.
• Choice of Broadcast Radio: Transmit and receive on either the 2.4GHz band or the 900MHz band. (P/N 5905 transmits and receives on the 2.4GHz band only.)
• Long Life Rechargeable Battery: 20 hour battery life with default settings
• Rugged and Splashproof: An IP61 rated plastic case, making it splashproof and rainproof (but not for permanent outdoor use).
• User Selectable SHoW IDs: City Theatrical has always produced wireless DMX products that allow the user to select the optimum transmission method. Users may select full bandwidth hopping, hopping limited to a section of the spectrum (including areas of the spectrum outside of the Wi-Fi range), or adaptive hopping.
• Adaptive Spread Spectrum Frequency Hopping: Adaptive Spread Spectrum Frequency Hopping identifies and masks off hopping channels that contain interference, replacing them in the hop sequence with alternate channels.
• Adjustable Output Power: Sometimes an application calls for the most available broadcast power, but many entertainment systems can utilize lower output power to reduce detrimental effects on other radio systems in the venue, reduce reflections, and improve performance.
• Ultra Low Latency: Total average system latency of 4ms.
• mDMX (Multiverse SHoW IDs only)
• mRDM (Multiverse SHoW IDs only)
• SHoW Key Security (Multiverse SHoW IDs only)
• Forward Error Correction (Multiverse SHoW IDs only)
• Protocols supported: ANSI E1.11 DMX512-A; E1.20 RDM
• Compatible with all Multiverse and SHoW DMX Neo products
• User can select a single universe to receive
• A very simple user interface to set SHoW ID, universe, and other features
• RDM proxy and responder functions
• USB-Power Adaptor and USB-A to USB-C cable included
• Selectable display timeout and brightness level
• Selectable Auto Off Timeout
• Battery Time Remaining displayed in both hours/minutes and percent

Product Information

Product Name

• Multiverse Studio Kit 900MHz/2.4GHz

Part Number

• 5938

Maximum Concurrent Universes

• 1–9

Frequency Range

• 2400–2480 MHz
• 902–928 MHz

Power Specifications (Kit)

Input Power

• 100–240 VAC
• 50–60 Hz

Maximum Draw

• 0.95 A

Radio Technology

Latency

• 4 ms average

RF Sensitivity

• -95 dBm

Loss of Data Behavior

• Output stops

Broadcast Power

• 3.2 mW EIRP
• 10 mW EIRP
• 32 mW EIRP
• 100 mW EIRP

Broadcast Modes

• Adaptive
• Full
• Low
• Mid
• High
• Max

SHoW IDs

• Multiverse: 307
• Neo: 70

RDM Features

• RDM Proxy
• RDM Responder

Environmental Specifications

IP Rating

• IP20

Operating Temperature

• 0°C to 40°C when charging

Compliance

• UL 508A (Kit)
• FCC
• IC
• cETLus Listed
• CE
• RoHS

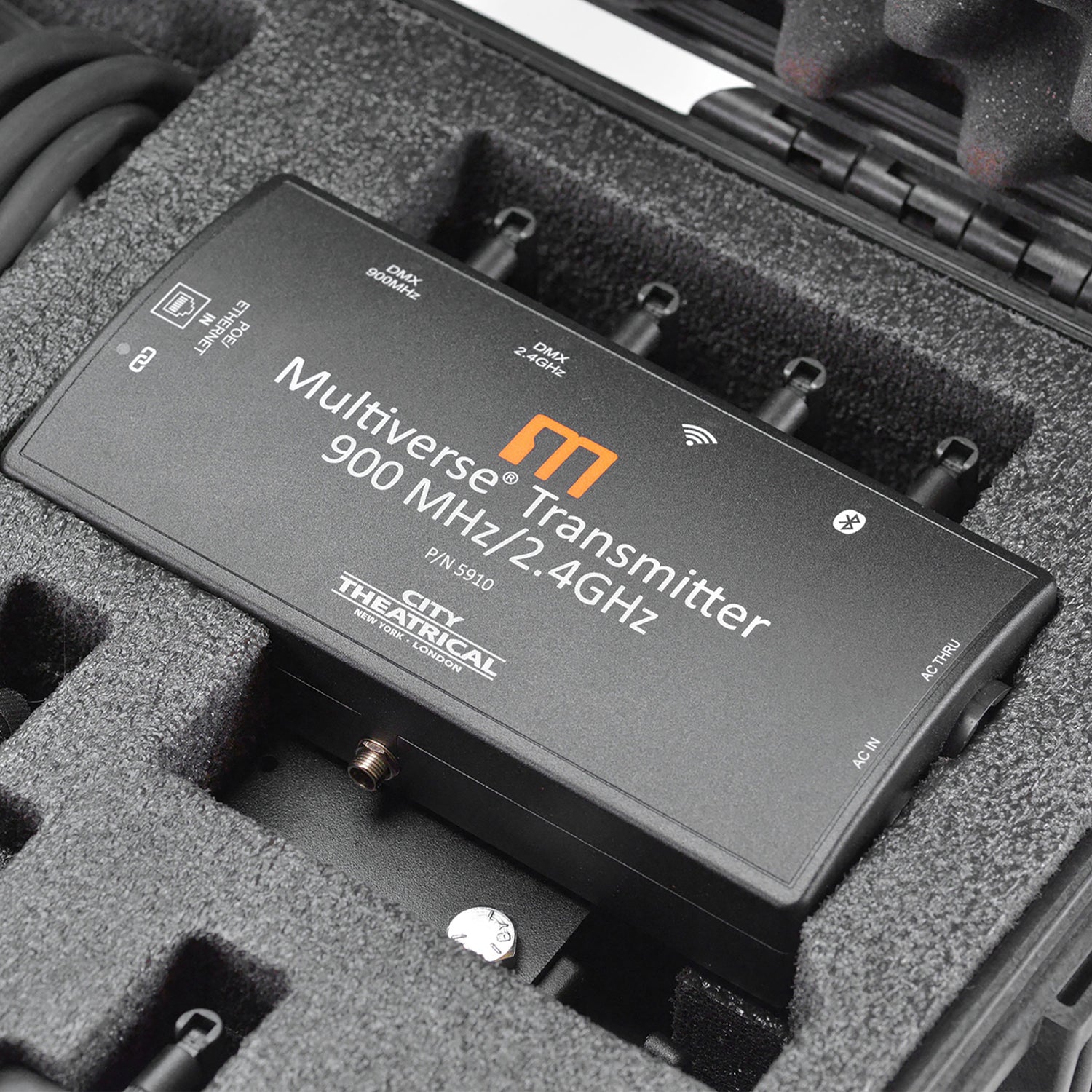

• (1x) City Theatrical Multiverse Transmitter 900MHz/2.4GHz

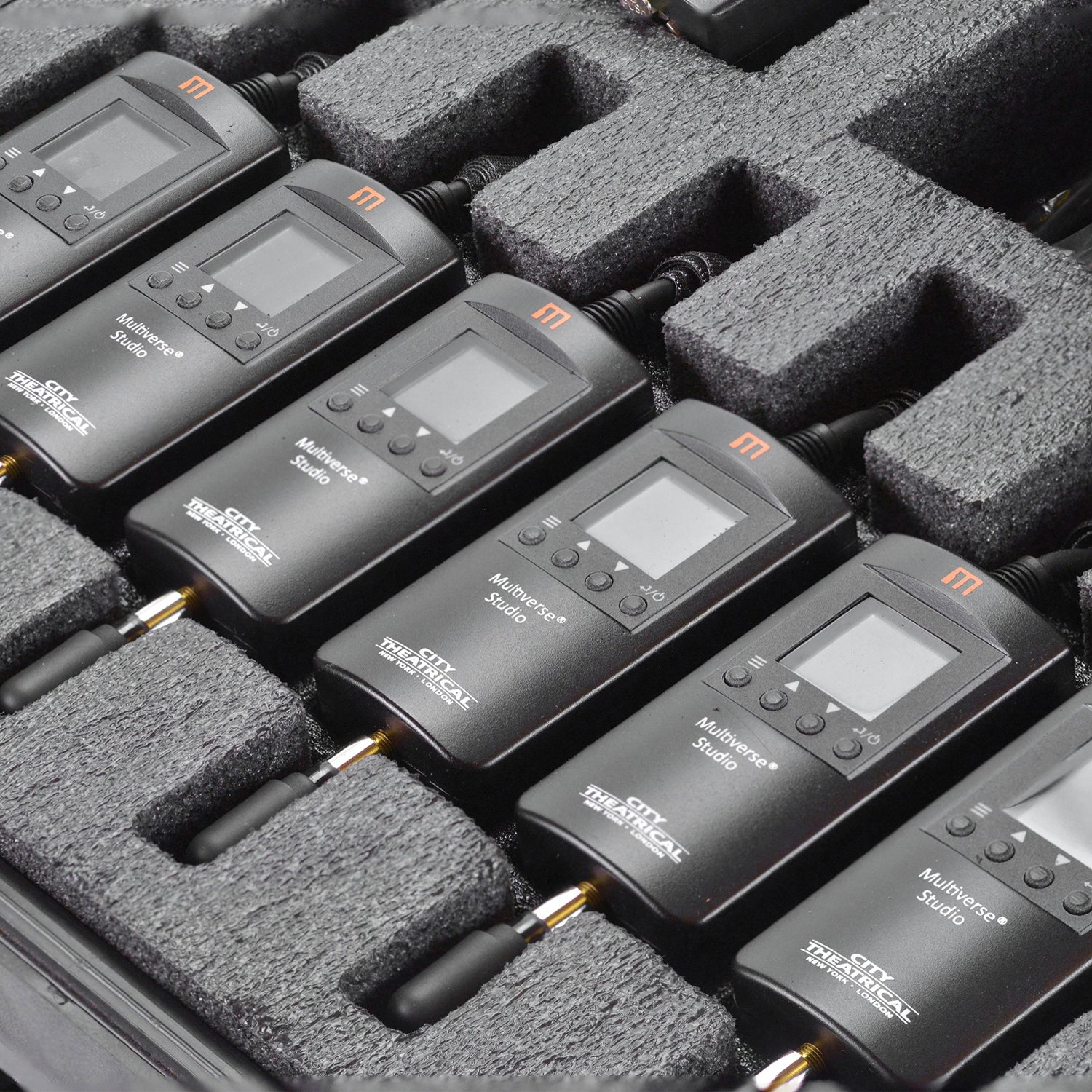

• (6x) City Theatrical Multiverse Studio Receiver 900MHz/2.4GHz
• (6x) City Theatrical Multiverse Receiver Power Supply
• (1x) City Theatrical Multiverse Node 900MHz/2.4GHz
• (1x) City Theatrical Multiverse Node Power Supply

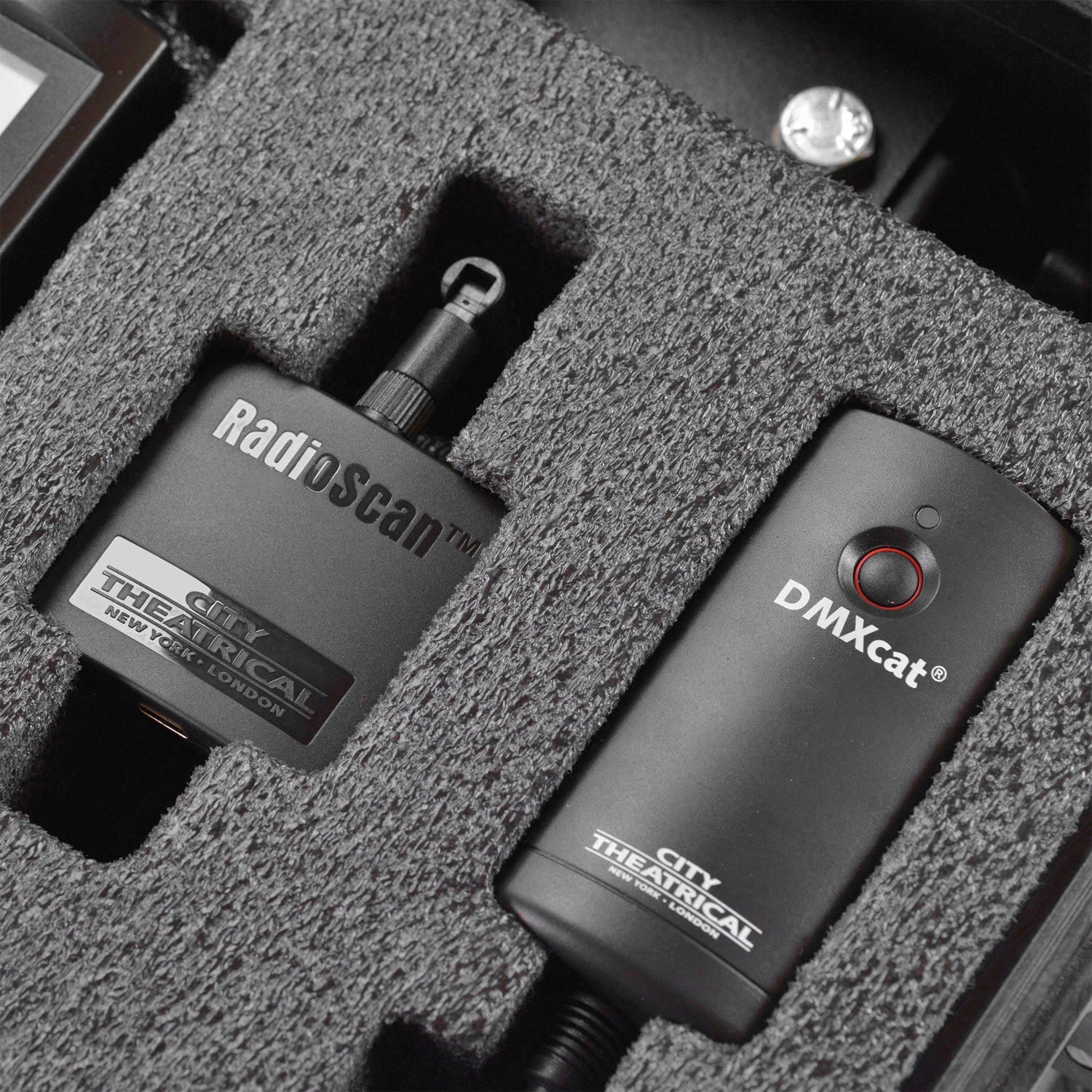

• (1x) City Theatrical RadioScan Spectrum Analyzer
