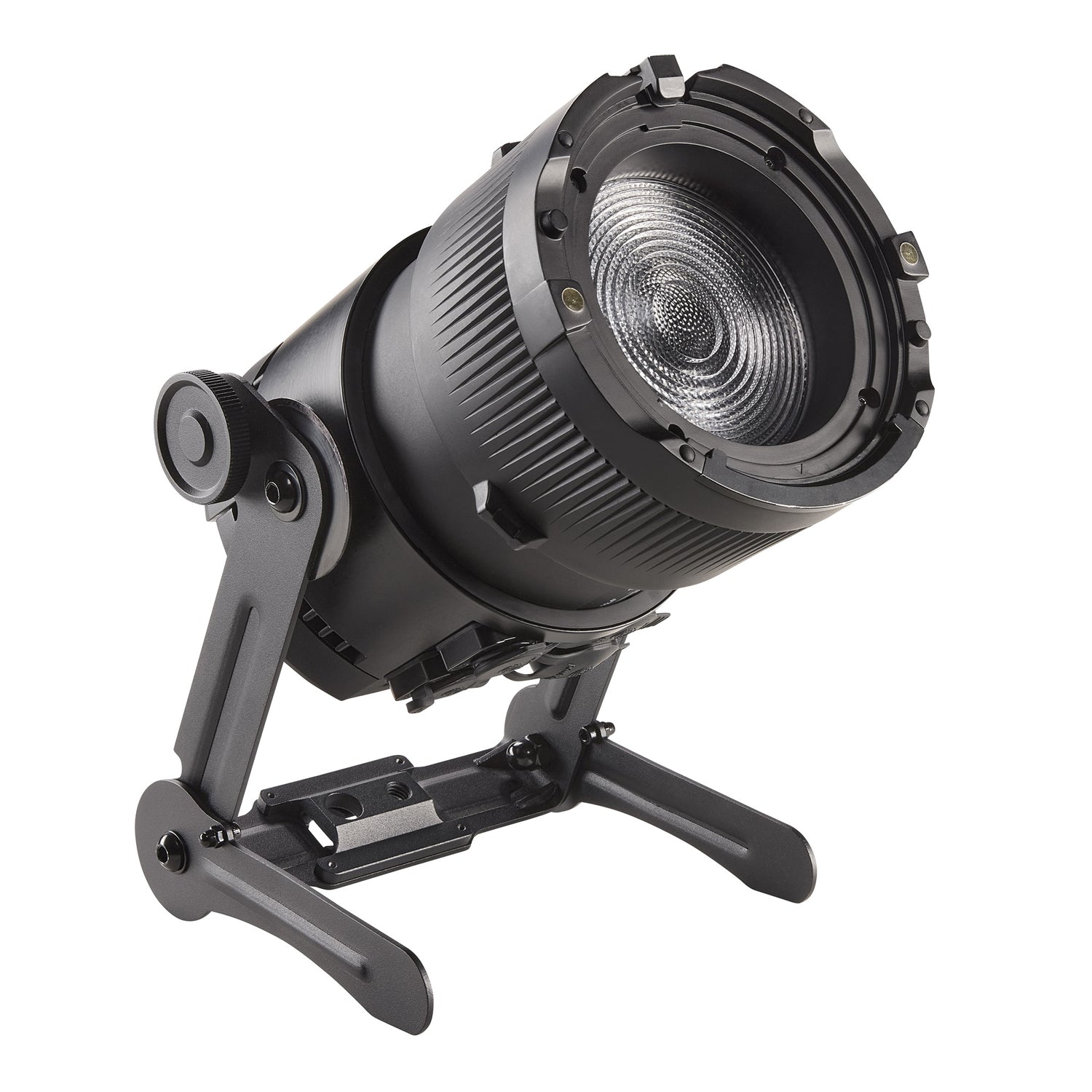

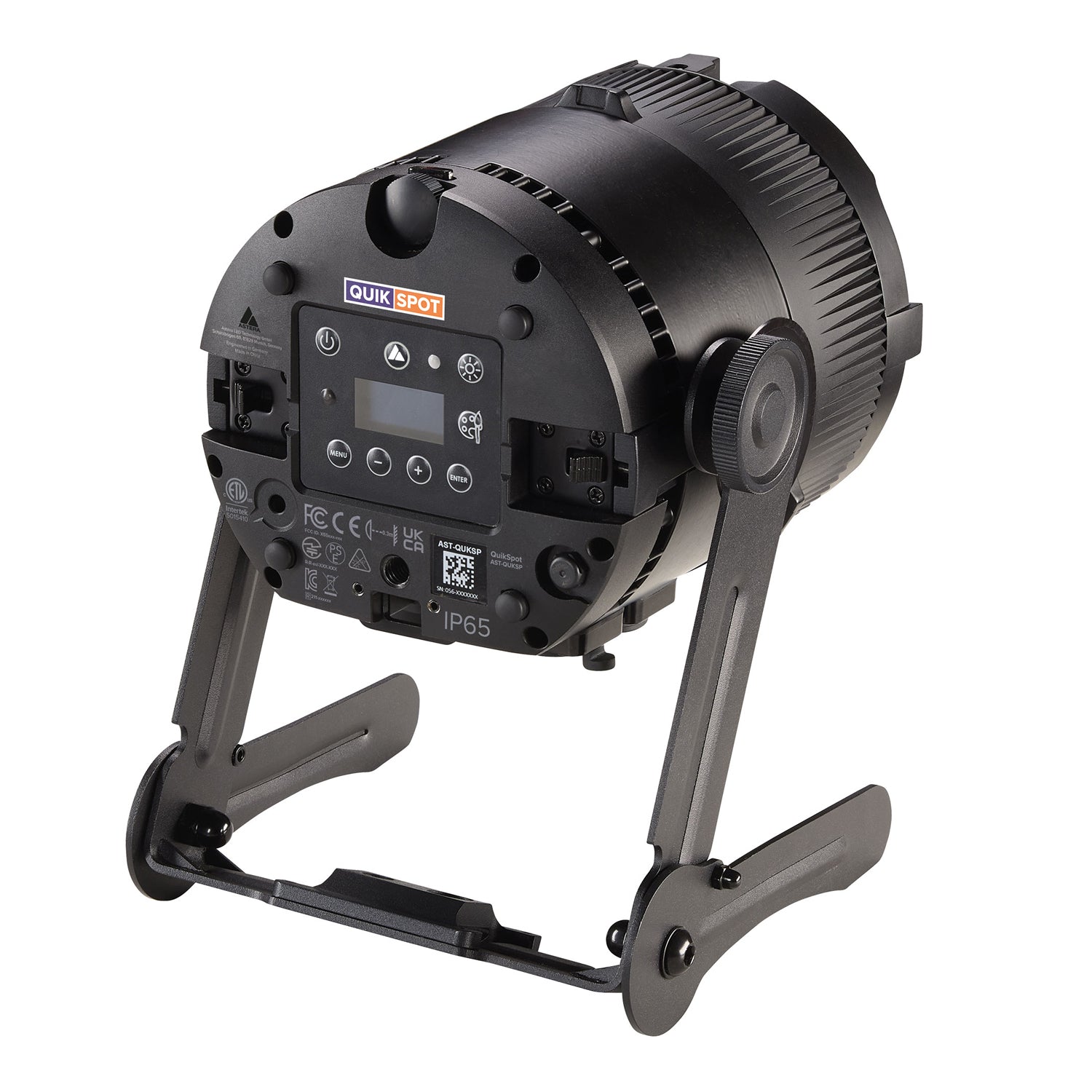

Astera QuikSpot Zoomable LED Spotlight

QuikSpot is a battery-driven uplight, a precise zoomable Fresnel with a 13º–60º adjustable beam, and a versatile, compact spotlight. With seamless integration into the Astera ecosystem, it’s the technician’s best friend, always ready to run and tackle any job.

• 60W LED engine with optimized optical efficiency
• PowerCON TRUE1 IN/OUT for AC power and daisy-chaining
• OutputGain mode for increased maximum brightness
• Removable yoke with multiple mounting options

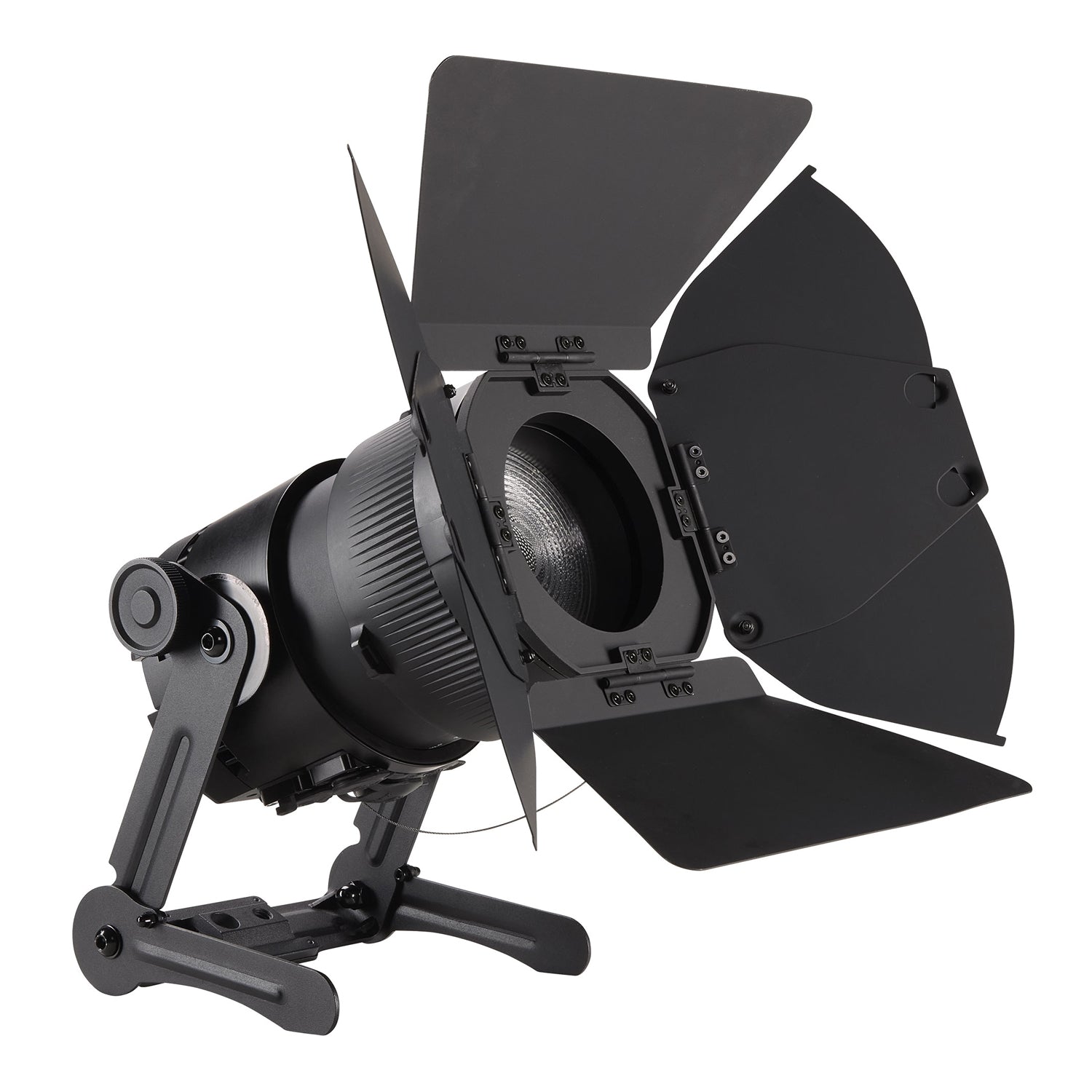

• Compatible with Astera ChargingPlate, PrepBox, and SafetyLink-ready barndoors for streamlined deployment and accessory integration

Light Engine

• LED Engine: Titan LED Engine
• Color Mixing: RGBMintAmber
• Total LED Power: 60 W
• LED Power Draw: 38 W
• Output Gain: Yes
• CRI (Ra): ≥96 (3200–6500 K)
• TLCI: ≥96 (3200–6500 K)
• Strobe Rate: 0–25 Hz

Battery & Power

• Battery Runtime: Up to 20 hours
• Battery Runtime (Maximum Brightness): 4.5 hours
• Battery Lifetime: 70% capacity after 500 charge cycles
• Charging Time: 5 hours (nominal)
• AC Input: 100–240 VAC, 50/60 Hz
• Input Current: 0.6 A @ 115 VAC / 0.3 A @ 230 VAC
• AC Connector: PowerCON TRUE1 IN/OUT
• Maximum Power Consumption: 50 W

Control & Connectivity

• Wired DMX: Yes
• CRMX Receiver: Built-in
• BluetoothBridge BTB: Built-in
• Wireless Protocols: CRMX, UHF, Bluetooth, WiFi
• Wireless Range:CRMX/UHF: Up to 300 m (330 yds)Bluetooth: Up to 3 m (3.3 yds)
• RDM Support: Wired & Wireless
• Infrared Control: Yes
• PrepBox Compatible: Yes

Environmental

• IP Rating (Wired): IP65
• IP Rating (Unwired): IP65
• Operating Temperature: 0–40 °C (32–104 °F)

Physical Specifications

• Dimensions (L × W × D): 164 × 164 × 182 mm (6.45 × 6.45 × 7.16 in.)
• Weight: 3.45 kg (7.6 lbs)

Mounting

• AirlineTrack Mounting System
• 3/8"-16 UNC Thread
• Removable Yoke with:3/8"-16 UNC Thread1/2" Mounting Hole
